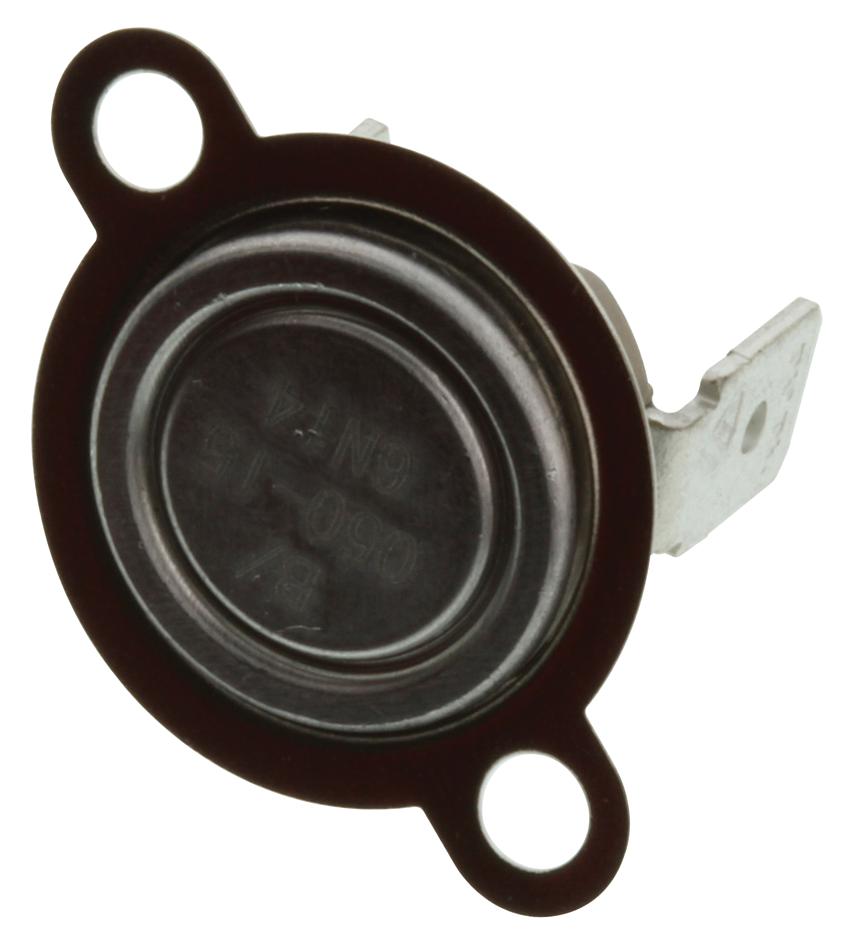

MULTICOMP T23B050ASR215 Temperature Sensor
The T23B050ASR2-15 is a single-pole, single-throw normally open contact temperature sensor with quick connect terminals. It offers a dielectric strength of 1000VAC for one minute or 1800VAC for one second, and an insulation resistance of at least 100Ω at 500VDC. The sensor features a durable PPS housing, silver alloy contacts, and a nickel-plated steel bracket, making it suitable for sensing and instrumentation applications. Its operating temperature is 50°C with a reset temperature of 135°C, and it is rated for resistive loads up to 15A at 240V AC.
MULTICOMP T23B050ASR215 Temperature Sensor Specifications:
- Contact Type: Normally open
- Action Temperature: 50°C +3 K
- Reset Temperature: 135°C +44 K
- Terminal Size: #250 TAB
- Maximum Circuit Resistance: > 50 mΩ
- Insulation Resistance: 2100 MΩ minimum at DC 500 V
- Dielectric Strength: AC 1,000 V for one minute or AC 1,800 V for one second
- Approvals: VDE, UL, CUL
- Electrical Rating: 15 A 240 V ac for 100,000 cycles, 16 A 250 V ac for 10,000 cycles, 15 A 120 V ac for 100,000 cycles
- Operation Life: Resistive load cycles vary by voltage and current
- Housing Material: PPS
- Contact Material: Silver Alloy
- Bracket Material: Nickel Plated Steel
Buy the Multicomp Series Temperature Sensor: T23B050ASR2-15
Get your Multicomp Series T23B050ASR2-15 temperature sensor online today. Designed for precise temperature monitoring, it features a durable PPS housing, silver alloy contacts, and quick connect terminals, making installation straightforward. Suitable for industrial and instrumentation applications, it offers high dielectric strength of up to 1800VAC, insulation resistance over 2100 MΩ, and is rated for resistive loads up to 15A at 240V AC. Ensure optimal thermal sensing with this reliable, high-performance sensor.
Order your Multicomp Series T23B050ASR2-15 temperature sensor today and ensure reliable temperature control for your industrial and sensing applications.
