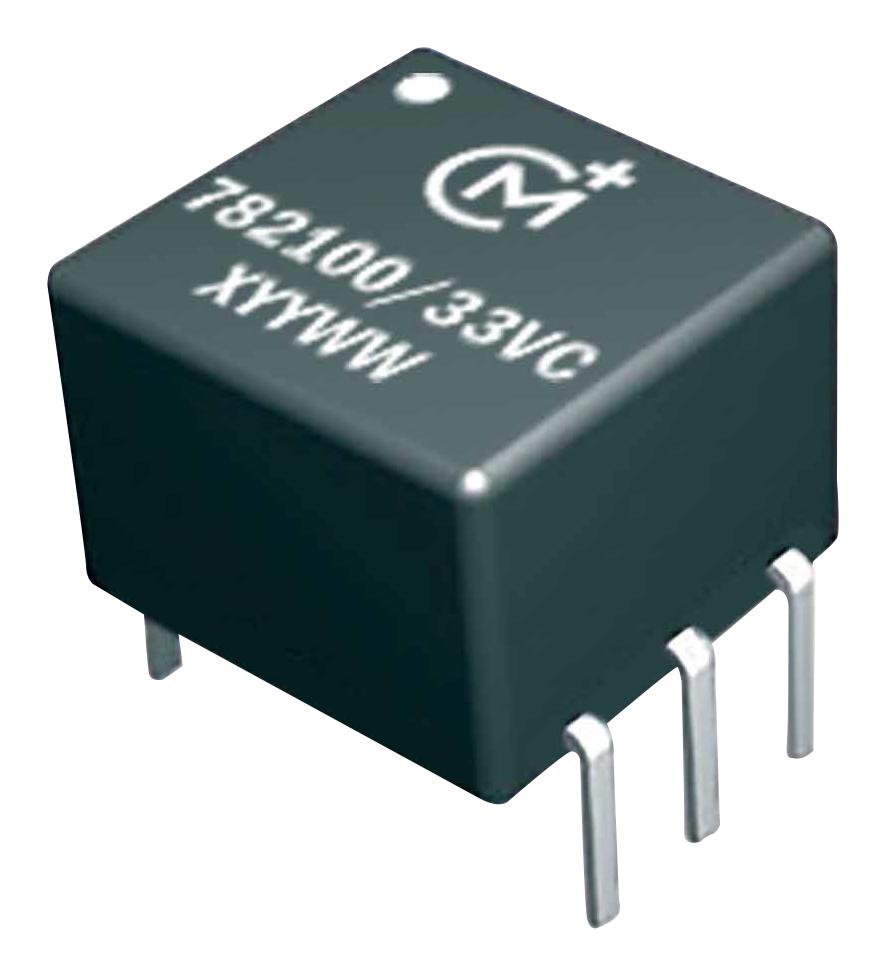

MURATA POWER SOLUTIONS 78210033VC Converter Transformer
The 782100 series of converter transformers from Murata Power Solutions are designed for use with the pSemi PE22100 chip set, providing isolated power supplies for transceivers in interface applications. Featuring toroidal construction, industry-standard pinouts, and UL 94 V-0 packaging, these transformers offer isolation tested to 4kV, operate within a -40°C to 85°C temperature range, and are RoHS compliant. Available in DIL and surface-mount packages, they ensure reliable performance and ease of installation in industrial environments.
MURATA POWER SOLUTIONS 78210033VC Converter Transformer Specifications:
- Primary Inductance: 150-203 µH (105°C max)
- Leakage Inductance: 8-5 Ht
- Inter winding Capacitance: 8 pF
- Primary Resistance: <0.1 VDC at 600 mA
- Voltage Ratio: 1CT:1.33CT, 1.14CTCT, 1:2.14, 1:1.33
- Isolation Voltage: 4kV (verified by high-pot test)
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -50°C to 125°C
- Peak Reflow Temperature: 245°C
- Pin Finish: Matte tin
- Package Types: DIL, SM surface-mount
- Tube Material: Antistatic coated clear polyethylene
- Tube Length: 500 mm
- Reel Quantity: 500 units for tape & reel
- Pin Pitch: 2.54 mm
- Maximum Soldering Temperature: 260°C for 10 seconds
Buy the Buy Murata Converter Transformer Part Number 78210033VC Online
Purchase the Murata Converter Transformer Series782100 33VC online today to guarantee high-quality, reliable isolation for your transceiver applications. This transformer is engineered for easy integration with industry-standard pinouts and features tested isolation of 4kV, ensuring safety and performance across a wide temperature range. Ideal for industrial environments, it offers toroidal construction for low profile design, RoHS compliance, and robust packaging options. Secure your supply chain with quick online ordering and seamless delivery to enhance your project’s reliability and safety standards.
Order your Murata Series782100 33VC isolated power transformer today and ensure reliable, high-quality transceiver operation in your industrial projects.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS 78210033VC?
You can click on the BUY or RFQ button to purchase 78210033VC from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 78210033VC?
You can download the 78210033VC datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of 78210033VC?
MURATA POWER SOLUTIONS
