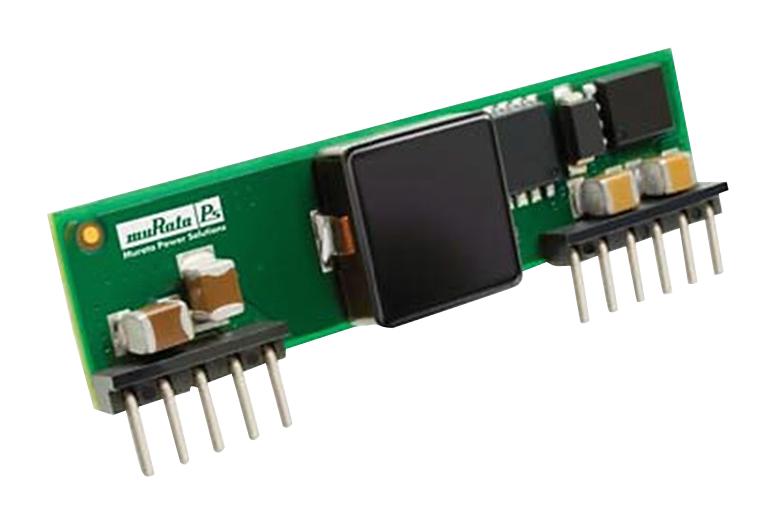

MURATA POWER SOLUTIONS OKXT10D12PC DC/DC Power Module
The OKX-T/10 and -T/16 series are compact SIP non-isolated Point-of-Load DC/DC converters designed for embedded applications. These industry-standard modules operate with an input voltage range of 8.3 to 14V DC, offering selectable outputs up to 16A with high efficiency of up to 94.5%. They support programmable output voltages from 0.7525V to 5.5V, include features such as On/Off control, Sense for load compensation, and optional Sequence/Tracking inputs. Certified safety standards, thermal protection, short circuit, over-current, and over-temperature protections ensure reliable performance in demanding environments.
MURATA POWER SOLUTIONS OKXT10D12PC DC/DC Power Module Specifications:
- Input Voltage Range: 8.3 to 14V DC
- Output Voltage Range: 0.7525V to 5.5V
- Output Current: 10A or 16A models
- Efficiency: up to 94.5% at 3.3V
- Operating Temperature Range: -40°C to +85°C with derating
- Size: 2.0 x 0.5 x 0.37 inches (51 x 12.7 x 9.4 mm)
- Regulation (Max): 20.15% at full load
- Ripple & Noise: < 20 mVp-p (typical)
- Safety Certifications: UL/EN/IEC 60950-1, RoHS-6, FCC EMI/RFI
- Protections: Over-current, over-temperature, short circuit, UVLO
- Switching Frequency: approximately 300 KHz
- MTBF: over 6.5 million hours
Buy the Murata Series OKX T/10 T/16 DC-DC Converters: OKXT10D12PC
Get reliable and efficient power conversion for your embedded systems with the Murata Series OKX T/10 T/16 DC-DC converters. These compact, industry-standard SIP modules support programmable output voltages up to 5.5V and currents up to 16A, ensuring versatile and robust power management. Featuring high efficiency of over 94%, thermal protections, and compliance with safety standards, these modules are ideal for powering CPUs, telecom equipment, and logic systems. Purchase online today to enhance your project’s performance with Murata’s trusted power solutions.
Order your Murata Series OKX T/10 T/16 DC-DC converter today and give your embedded projects the dependable, high-efficiency power they deserve.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS OKXT10D12PC?
You can click on the BUY or RFQ button to purchase OKXT10D12PC from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part OKXT10D12PC?
You can download the OKXT10D12PC datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of OKXT10D12PC?
MURATA POWER SOLUTIONS
