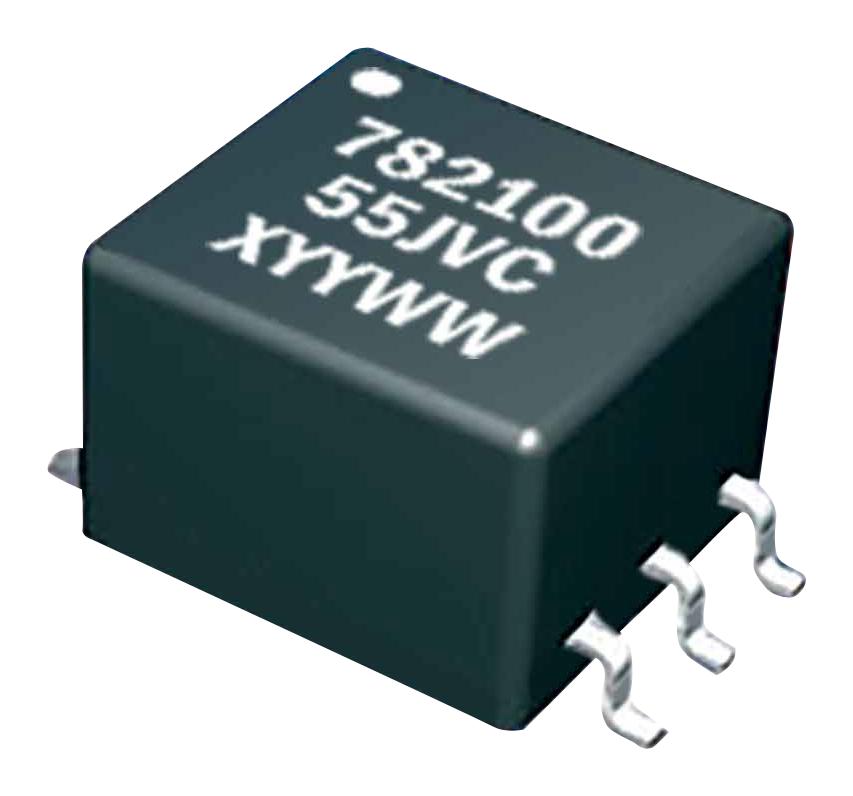

MURATA POWER SOLUTIONS 78210055JVC Converter Transformer
The 782100 series converter transformers are designed for use with the pSemi PE22100 chip set, providing isolated power supplies for transceivers in industrial interface applications. Featuring toroidal construction, industry-standard pinout, UL 94 V-0 package materials, and compatibility with RoHS standards, these transformers undergo isolation testing to 4kV, ensuring high reliability. They support input voltages of 3.3V and 5V, with various turns ratios and package options including DIL and surface-mount configurations, suitable for demanding industrial environments.
MURATA POWER SOLUTIONS 78210055JVC Converter Transformer Specifications:
- Input Voltage: 3.3V or 5V
- Output Voltage Ratios: 1.33, 1.14, 2.14, 1.33
- Isolation Voltage: 4000V
- Primary Inductance: 150–203 μH at 100kHz
- Leakage Inductance: 5–8 μH
- Inter winding Capacitance: 8 pF
- Primary Resistance: <0.1VDC at 600mA
- Volt-time Product: 13–25 Vμs
- Maximum Operating Temperature: -40°C to 85°C
- Peak Reflow Temperature: 245°C
- Pin Finish: Matte tin
- Package Types: DIL, SM Surface Mount
- Package Material: UL 94 V-0
- Dimensions: DIL - 7.7 x 6.35 mm; SM - 6.35 x 7.7 mm
- Reel Quantity: 500 units for tape & reel packaging
Buy the Murata 78210055JVC – Reliable Transformer for Industrial Applications
Order the Murata converter transformer today to benefit from our high-quality, reliable isolation components, perfect for industrial transceivers. This transformer supports various input voltages with high isolation voltage up to 4kV, ensuring safety and stability in demanding environments. Featuring toroidal construction and industry-standard packaging, it is designed to meet rigorous industrial requirements. Easy to install with multiple package options, this transformer guarantees excellent performance, durability, and compliance with RoHS standards. Secure your inventory now and achieve optimal performance in your applications.
Buy Murata 78210055JVC transformer now and ensure high-quality, isolated power supplies for your industrial transceiver projects.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS 78210055JVC?
You can click on the BUY or RFQ button to purchase 78210055JVC from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 78210055JVC?
You can download the 78210055JVC datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of 78210055JVC?
MURATA POWER SOLUTIONS
