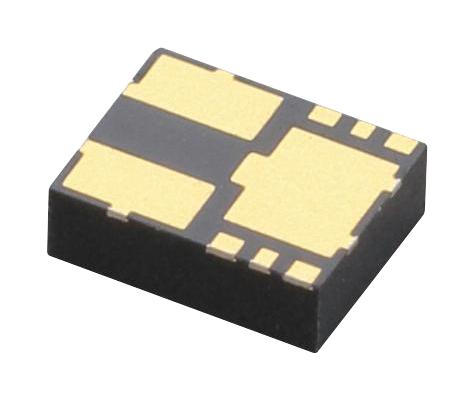

MURATA POWER SOLUTIONS MYRGM250150B31RA Step-Down Converter
The MYRGM250150B31RA is a compact, integrated step-down DC/DC converter with a built-in inductor, ideal for efficient power regulation in portable electronics. It supports input voltages from 2.7V to 5.5V with an output voltage range of 0.8V to 3.6V and delivers up to 1.5A of current. Featuring high-speed transient response, low noise, and a switching frequency of 3.0MHz, it incorporates protections such as UVLO, thermal shutdown, and short-circuit protection. Its small package (2.5mm x 3.2mm x 1.0mm) makes it suitable for space-constrained applications like tablets, smartphones, and portable devices.
MURATA POWER SOLUTIONS MYRGM250150B31RA Step-Down Converter Specifications:
- Input Voltage: 2.7V to 5.5V
- Output Voltage Range: 0.8V to 3.6V
- Output Current: Up to 1.5A
- Switching Frequency: 3.0MHz
- Package Dimensions: 2.5mm x 3.2mm x 1.0mm
- Built-in Inductor: Yes
- Efficiency: Up to 92%
- Soft-start Time: Approx. 0.3ms
- Protection Functions: UVLO, thermal shutdown, short circuit latch
- Operating Temperature: -49°C to +105°C
- Input Pin Voltage: Max 6.2V
- Quiescent Current: ~25μA (B series), ~28μA (W series)
- Discharge Function: Integrated Ci discharge
- Compliance: RoHS, Halogen Free
Buy the Buy Murata PicoBK™ Step-Down Converter Part Number MYRGM250150B31RA Online
Enhance your electronic projects with the Murata PicoBK MYRGM250150B31RA, a compact inductor-integrated step-down DC/DC converter. Supporting input voltages from 2.7V to 5.5V and output voltages from 0.8V to 3.6V, it provides up to 1.5A current with high efficiency of over 92%. Thanks to its small size (2.5mm x 3.2mm x 1.0mm), it is perfect for space-constrained applications like smartphones, tablets, and portable devices. Features include rapid soft-start, thermal shutdown, UVLO, and short-circuit protection, ensuring safe and stable operation. Its innovative high-speed transient response circuit makes it suitable for demanding power regulation needs, enabling designers to develop reliable and efficient power solutions for modern electronics.
Get Murata PicoBK™ MYRGM250150B31RA today—designed for high efficiency, small size, and reliable performance in portable electronics and power management systems.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS MYRGM250150B31RA?
You can click on the BUY or RFQ button to purchase MYRGM250150B31RA from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MYRGM250150B31RA?
You can download the MYRGM250150B31RA datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of MYRGM250150B31RA?
MURATA POWER SOLUTIONS
