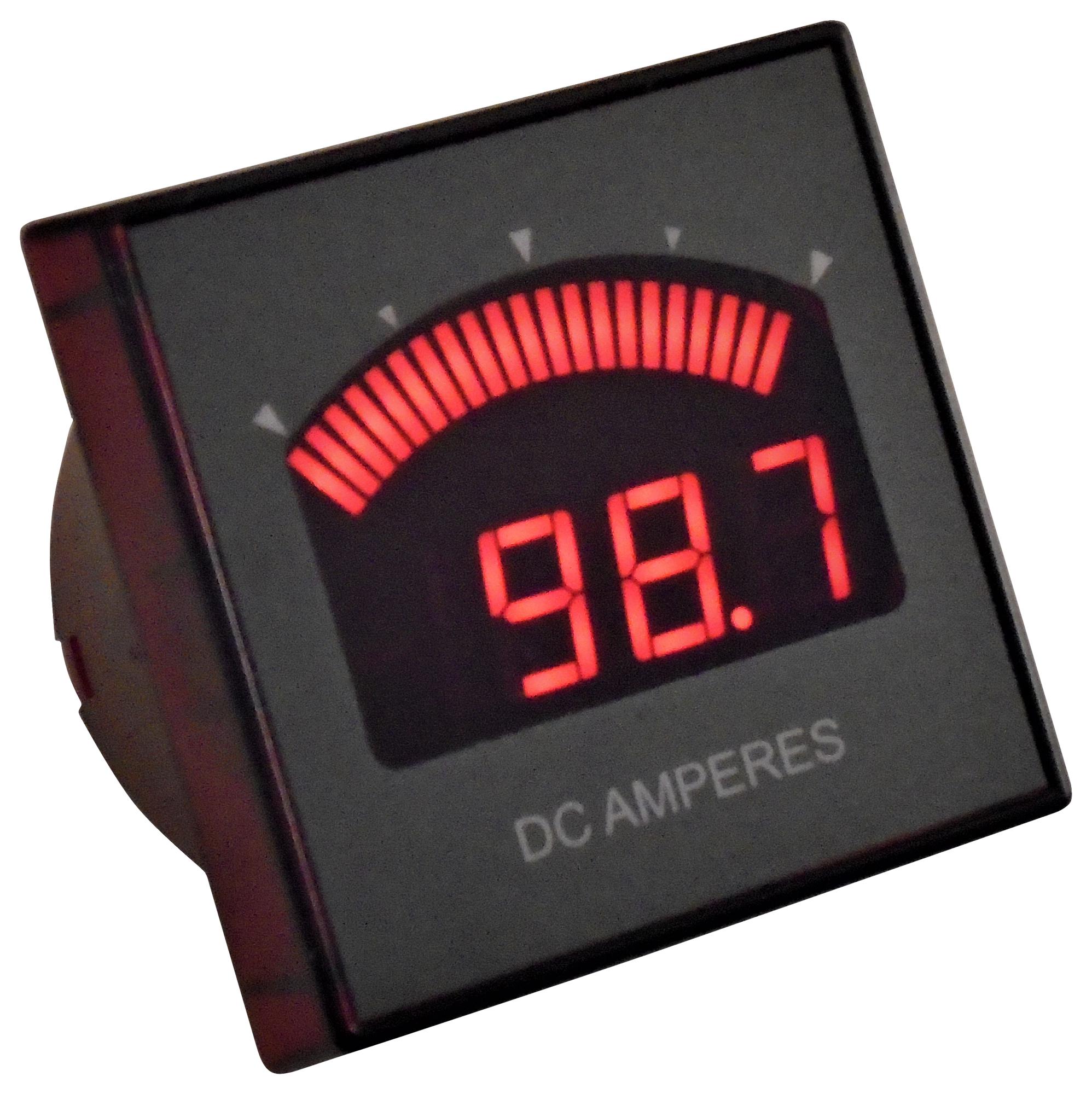

MURATA POWER SOLUTIONS DMR35DCA1DC1R Precision DC Shunt Ammeter
The DMR35-DCA series is a precision DC shunt ammeter designed for accurate current measurement. It features measurement ranges from 1 to 5 amperes and operates on a 9 to 32V DC power supply. The ammeter includes a bright, easily readable red LED display, capable of up to 3.5-digit measurements, and incorporates a bar-graph display scale for visual indication. It offers a measurement accuracy of 0.8% and allows user-adjustable display brightness. This device serves as a mechanical drop-in replacement for common analog-moving meters and comes with a two-year warranty. Please note that due to high market demand, delivery times may be extended, and prices are exempt from discounts.
MURATA POWER SOLUTIONS DMR35DCA1DC1R Precision DC Shunt Ammeter Specifications:
- Measurement Ranges: 1-5A models with 8 DIP switch selectable ranges including 0-1A, 0-2A, 0-3A, 0-5A
- Power Supply: 9-32V DC; Typical current 37 mA at 12V
- Display: 3-1/2 digit 7-segment LED (11.4mm high), 21 segment bar-graph, red color
- Measurement Accuracy: ±0.8% of reading + 2 counts
- Burden Voltage: 50 mV at full scale (6A, 25A ranges)
- Absolute Max Current: ±10A (DCA1), ±27A (DCA2)
- Dimensions: Refer to mechanical specifications, typical installation thickness 0.062-0.25 inches
- Operating Temperature: 0°C to 50°C; Storage -40°C to 70°C
- Protection: Splash and dust resistant front face, protected against momentary overvoltage and reverse polarity, external fusing recommended
- Housing: Polycarbonate, mountable in round holes, drop-in replacement for analog meters
Buy the Buy Murata Precision DC Shunt Ammeter Part Number DMR35DCA1DC1R Online
Order the Murata DMR35DCA1DC1R now to benefit from precise DC current measurements in your applications. This high-quality ammeter features easy-to-read LED display, adjustable brightness, and broad measurement ranges from 1 to 5 amperes. Perfect for laboratory and industrial use, it offers 0.8% accuracy, rugged construction, and convenient drop-in replacement for analog meters. With a 2-year warranty, secure your supply today and ensure reliable, accurate current monitoring in your projects.
Get Murata DMR35DCA1DC1R today—designed for precise current measurements with bright display and reliable performance.
