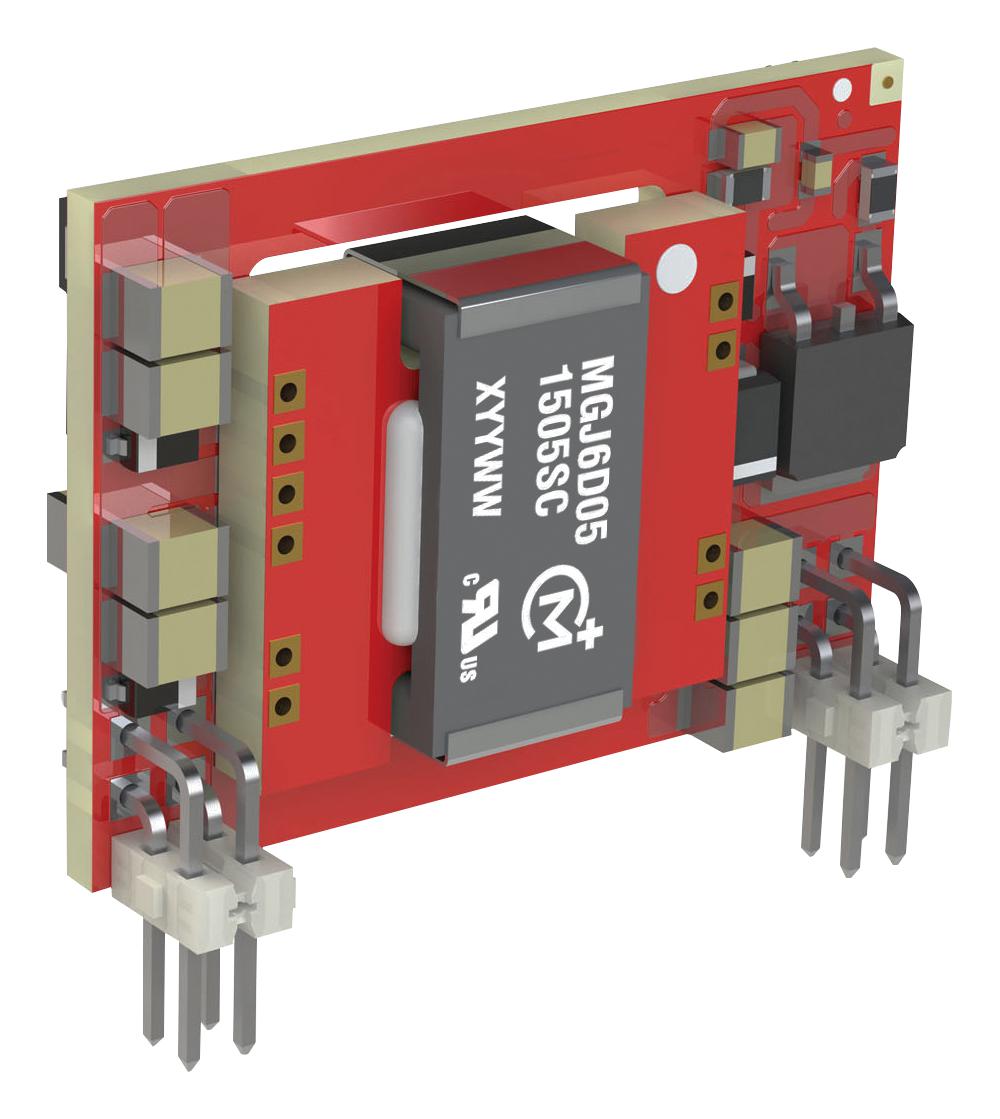

MURATA POWER SOLUTIONS MGJ6D241510SC Gate Drive Isolated Converter
The MGJ6D241510SC from Murata Power Solutions is a high-performance, isolated DC-DC converter designed for gate drive applications. It provides 5.2 kVDC isolation, up to 6W of power, and features a no opto feedback design with continuous short-circuit protection. The converter offers configurable dual output voltages, making it suitable for powering high-side and low-side gate drive circuits for IGBTs in bridge configurations. It supports a wide input voltage range of 18V to 36V (nominal 24V) and includes protection features such as overload protection, low coupling capacitance, and high dv/dt immunity (80kV/µs at 1.6kV). The device is characterized for high isolation and dv/dt requirements common in motor drives and inverters, with a disable/frequency synchronization pin to simplify EMC filter design. Operating at a switching frequency of 100kHz, it has line regulation of 2% and total regulation of 15%. The converter is compact, measuring approximately 38.89mm x 10.9mm x 28.12mm, weighs about 12 grams, and operates efficiently over temperatures from -40°C to 105°C.
MURATA POWER SOLUTIONS MGJ6D241510SC Gate Drive Isolated Converter Specifications:
- Input Voltage Range: 18V to 36V (nominal 24V)
- Output Power: 6W
- Isolation Voltage: 5.2 kVDC
- Switching Frequency: 100kHz
- Line Regulation: 2%
- Total Regulation: 15%
- Operating Temperature: -40°C to 105°C
- Dimensions: approximately 38.89mm x 10.9mm x 28.12mm
- Weight: about 12 grams
- High dv/dt immunity: 80kV/µs at 1.6kV
- Protection Features: overload, short circuit
- Supports dual outputs: +15V/-5V, +20V/-5V
- Designed for high-side gate drive applications
- Includes disable/frequency sync pin for EMC filtering
- Reinforced insulation, UL recognized for safety
Buy the Murata Series MGJ6 5.7KVDC Isolated Gate Drive Converter: MGJ6D241510SC
Purchase the Murata MGJ6D241510SC now to ensure reliable and efficient gate drive power for your motor drives, inverters, and power control circuits. This high-isolation DC-DC converter offers configurable dual outputs supporting 18V to 36V input, with built-in protection features, high dv/dt immunity, and UL safety certification. Its compact design, around 38.89mm x 10.9mm x 28.12mm, ensures easy integration into your power systems. Ideal for high-side and low-side gate drive circuits, it enhances system performance, safety, and EMI compliance. Optimize your electronics with Murata's trusted solution today!
Order your Murata Series MGJ6D241510SC high-voltage gate drive transformer today and give your power inverters and motor controllers the dependable isolation they need.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS MGJ6D241510SC?
You can click on the BUY or RFQ button to purchase MGJ6D241510SC from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MGJ6D241510SC?
You can download the MGJ6D241510SC datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of MGJ6D241510SC?
MURATA POWER SOLUTIONS
