MURATA POWER SOLUTIONS DMS20LCD25C Digital Voltmeters

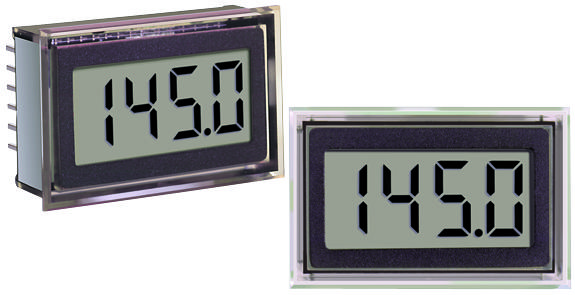

The DMS-20LCD-2-5-C is a 3.5-digit LCD digital panel voltmeter housed in a compact, epoxy-encapsulated DIP package measuring 1.38 x 0.88 x 0.43 inches. It features a built-in bezel for easy panel or PCB mounting and offers high accuracy with ±1 count resolution. The device includes a low-battery indicator, supports input voltages up to ±20V, and displays Aqua-colored characters. Operating within a temperature range of 0 to 60°C, this rugged and reliable meter is suitable for automation, process control, and test and measurement applications. Due to high market demand, lead times may be extended, and the product is exempt from discounts.
MURATA POWER SOLUTIONS DMS20LCD25C Digital Voltmeters Specifications:
- Display Type: LCD, 3.5 digits, 0.37 inches high (9.4mm)
- Input Voltage Range: Up to ±20V with four differential ranges (+200mV, +2V, +20V, +200V)
- Accuracy: ±1 count (0.05%) after calibration
- Operating Temperature Range: 0 to +60°C
- Storage Temperature Range: -20 to +75°C
- Input Impedance: Minimum 800kΩ
- Overvoltage Protection: Up to +100V (pin 12), +250V for higher models
- Power Supply: Single +5V DC or 9V battery
- Dimensions: 1.38 x 0.88 x 0.43 inches (35mm x 22mm x 11mm)
- Weight: 0.4 ounces (11 grams)
- Case Material: Polycarbonate
- Display Colors: Aqua (LED backlit models available)
- Additional Features: Low-battery indicator, auto-polarity, overrange indication
- Mounting: Panel or PCB, with bezel included
Buy the Buy Murata Digital Voltmeters Part Number DMS20LCD25C Online
Purchase the Murata DMS-20LCD-2-5-C digital voltmeter online today to ensure precise voltage measurement in automation and industrial applications. This compact, epoxy-encapsulated 3.5-digit LCD meter offers high accuracy, easy mounting with bevels for panel or PCB installation, and a low-battery indicator to prevent measurement errors. Operating from a +5V supply or a 9V battery, it features four differential input ranges up to ±20V, making it versatile for various testing and process control scenarios. Its rugged design guarantees long-term reliability, and purchasing online ensures quick delivery and support.
Buy Murata DMS20LCD25C now and experience unmatched reliability and precision for your automation and measurement needs.
