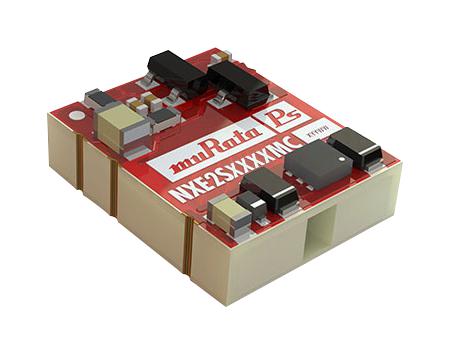

MURATA POWER SOLUTIONS NXE2S1205MCR7 medical isolated DC-DC converter
The NXE2S1205MCR7 is a 2W isolated surface-mount DC-DC converter series ideal for medical and industrial applications requiring electrical isolation. Featuring substrate embedded transformers and industry-standard footprints, these converters deliver reliable, consistent performance with UL, ANSI/AAMI, and IEC safety certifications. They operate over a wide temperature range, with short circuit protection, and offer high isolation voltages up to 3kVDC. Designed for easy reflow soldering, these converters are halogen-free and provide optimal electromagnetic compatibility, making them suitable for sensitive electronic systems demanding high safety and durability.
MURATA POWER SOLUTIONS NXE2S1205MCR7 medical isolated DC-DC converter Specifications:
- Input Voltage Range: 4V to 5V (5V input), 4V to 12V (12V input)
- Output Power: 2W
- Output Voltage: 5V (±5%), 12V (±5%), 15V (±5%) options available
- Isolation Voltage: 3kVDC withstand voltage, 1 MOPP safety rating
- Efficiency: Up to 85%, depending on model
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -50°C to +125°C
- Dimensions: 12.70mm x 10.41mm x 4.41mm (typical)
- Reflow Soldering Compatibility: Peak 260°C, Industry-standard footprint
- Safety Certifications: UL 60950, UL 60601-1, IEC 60601-1, ANSI/AAMI ES60601-1
- Package: Halogen free, substrate embedded transformer, iLGA package
- Short Circuit Protection: Yes, momentary or continuous depending on model
- UL and IEC recognized insulation and dielectric withstand voltage tests
Buy the Buy Murata NXE2S1205MCR7 Part Number 1205 Online
Purchase the Murata NXE2S1205MCR7 online today. This high-reliability, medical-grade 2W isolated surface-mount converter features embedded transformers, UL and IEC safety approvals, and operates across a wide temperature range. Perfect for sensitive healthcare and industrial systems, it ensures electrical safety with 3kVDC withstand voltage and offers secure, durable performance. Its industry-standard footprint guarantees compatibility with existing designs, and halogen-free construction aligns with environmental standards. Buy now for consistent power delivery in critical applications.
Get Murata NXE2S1205MCR7 today—designed for medical and industrial applications with high isolation voltage and reliable performance.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS NXE2S1205MCR7?
You can click on the BUY or RFQ button to purchase NXE2S1205MCR7 from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part NXE2S1205MCR7?
You can download the NXE2S1205MCR7 datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of NXE2S1205MCR7?
MURATA POWER SOLUTIONS
