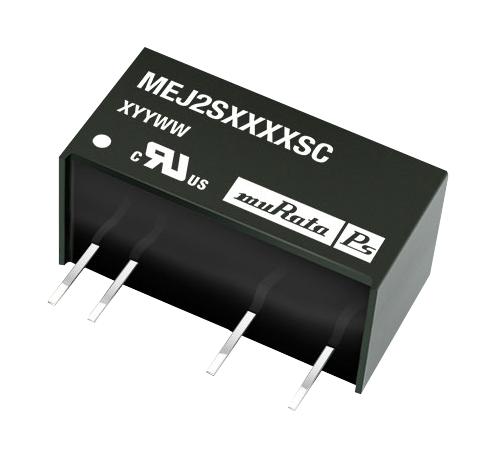

MURATA POWER SOLUTIONS MEJ2D0505SC Medical DC-DC Converter
The MEJ2 series provides single and dual output medically approved DC/DC converters, offering an upgrade from the NMJ series SIP modules. These compact, reliable converters meet UL 60950 and ANSI/AAMI ES60601-1 standards, suitable for medical and safety-critical applications. Features include internal SMD construction, full encapsulation with toroidal magnetics, and pin compatibility with the MEV, NMV, NMK, and NMJ series. With an MTTF up to 4.2 million hours, a power density of 0.81 W/cm³, and a footprint of 1.96 cm², they excel in signal processing and industrial settings.
MURATA POWER SOLUTIONS MEJ2D0505SC Medical DC-DC Converter Specifications:
- Isolation Test Voltage: 5.2kVDC for 1 second
- Resistance: 1 GΩ at 50VDC
- Isolation Capacitance: 4 pF
- Barrier Withstand Voltage: 2400V non-safety, 200V UL60950, 200V ANSI/AAMI
- Power Rating: 2 W at -40°C to 85°C ambient temperature
- Voltage Set Point Accuracy: ±2%
- Line Regulation: 1.0-12%
- Storage Temperature Range: -55°C to +125°C
- Case Temperature Range: -40°C to +85°C
- Cooling Method: Free air convection
- Switching Frequency: 45 kHz
- Lead Temperature (soldering): 260°C for 10 seconds
- Dimension: 12.5 mm x 10.3 mm x 4.1 mm (L x W x H)
- Weight: 4.39 g
- Pin Configuration (single): 1 +Vin, 2 Vin, 5 -Vout, 7 +Vout
- Pin Configuration (dual): 1 +VeU, 2 Vain, 5 -Vout, 6 -Vout, 7 +Vout
- RoHS Compliant: Yes, compatible with wave soldering up to 260°C
Buy the Murata Series MEJ2 DC-DC Converter: MEJ2D0505SC
Purchase the Murata MEJ2D0505SC online today to ensure your medical and industrial devices operate with exceptional reliability and safety. These high-quality, compact DC-DC converters are certified under UL 60950 and ANSI/AAMI ES60601-1 standards, making them ideal for mission-critical applications. Featuring full encapsulation, toroidal magnetics, and a mean time to failure of up to 4.2 million hours, they deliver superior performance in a small footprint. Trust Murata for dependable power solutions, available for quick, secure online ordering.
Get Murata MEJ2D0505SC today—built for medical-grade reliability and compact signal processing applications.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS MEJ2D0505SC?
You can click on the BUY or RFQ button to purchase MEJ2D0505SC from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MEJ2D0505SC?
You can download the MEJ2D0505SC datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of MEJ2D0505SC?
MURATA POWER SOLUTIONS
