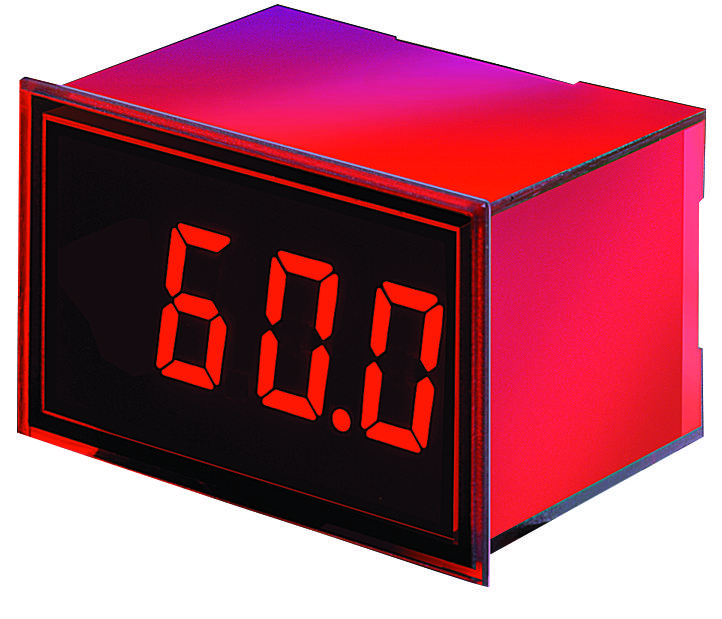

MURATA POWER SOLUTIONS DMS20PC3FMC AC Frequency Monitor
The Murata Power Solutions DMS-20PC-FM Series are ultra-compact, self-powered AC frequency meters designed for critical power applications. Featuring large 3-digit red LED displays, these models operate over 47.0-99.0Hz at 85-140Vac, 47.0-99.0Hz at 170-264Vac, and 350-450Hz at 85-140Vac. They are epoxy encapsulated for durability in harsh environments and require no external power supply. Easy to install with screw or blade terminals, they provide high accuracy with a sampling rate of 4 readings per second, making them ideal for emergency power systems and monitoring applications.
MURATA POWER SOLUTIONS DMS20PC3FMC AC Frequency Monitor Specifications:
- Dimensions: 1.38" x 0.88" x 1.00"
- Display Type: 3 digit, red LED, 0.40"/10.2mm
- Input Frequency Ranges: 47.0-99.0Hz (85-140Vac), 47.0-99.0Hz (170-264Vac), 350-450Hz (85-140Vac)
- Current Consumption: 50mA max
- Measurement Accuracy: ±0.1Hz (50/60Hz models), ±1.0Hz (400Hz model)
- Operating Temperature: -25°C to +60°C
- Humidity: 0-95% non-condensing
- Case Material: Polycarbonate
- Weight: 1 ounce (28 grams)
- Input Terminals: Screw or blade terminals
- Power: Self-powered, no external supply required
- Sampling Rate: 4 readings/sec
- UL: UL Recognized, IEC 61010-1 Category II
- Environmental: Epoxy encapsulated for durability, suitable for harsh environments
Buy the Buy Murata AC Frequency Monitor Part Number DMS20PC3FMC Online
Purchase the Murata Power Solutions DMS-20PC-FM Series online today. These compact, self-powered AC frequency meters feature large LED displays and high accuracy, ideal for power monitoring in harsh environments. Easy to install with screw or blade terminals, they operate over a wide voltage range and provide reliable, real-time frequency readings. Perfect for emergency backup systems and industrial applications, ensuring precise power frequency measurement with minimal maintenance. Order directly to enjoy fast shipping and support.
Get Murata DMS-20PC-3-FM today—built for precision and long-lasting durability in hazardous environments.
