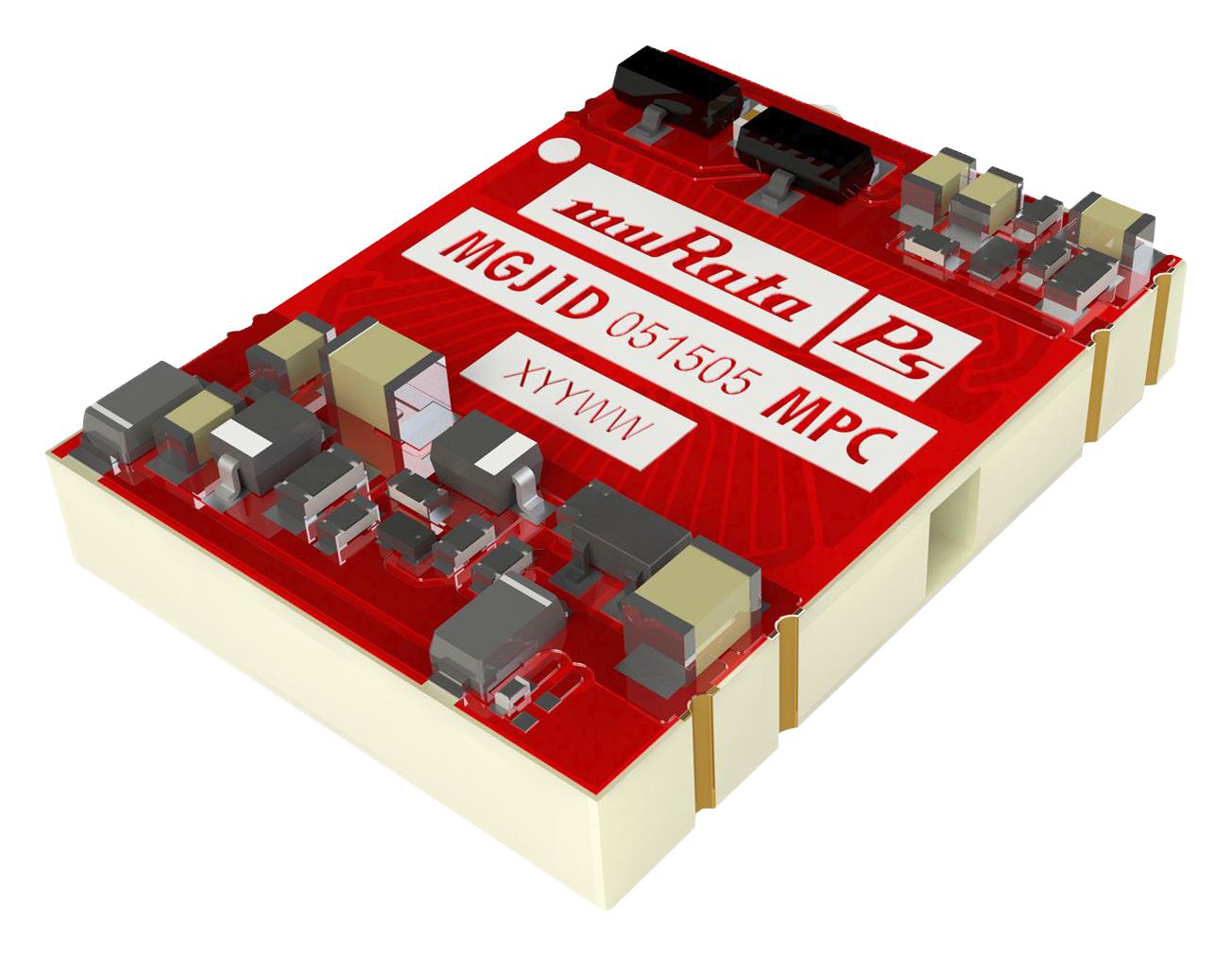

MURATA POWER SOLUTIONS MGJ1D051510MPCR7 High-Voltage Isolated DC-DC Converter
The MGJ1 series from Murata Power Solutions are 5.7kVDC isolated 1W surface-mount DC-DC converters designed for high-voltage gate drive applications for IGBT, SiC, and MOSFET circuits. These converters offer optimized bipolar output voltages, reinforced UL60950 insulation, high isolation up to 5700VDC, and operation at ambient temperatures up to 105°C. Featuring short circuit protection and low coupling capacitance, they accommodate 12V, 15V, and 24V inputs with various output configurations, making them ideal for bridging circuits in industrial and medical environments.
MURATA POWER SOLUTIONS MGJ1D051510MPCR7 High-Voltage Isolated DC-DC Converter Specifications:
- Isolation test voltage: 5700VDC for 3 seconds, qualified at 1 minute
- Rated power: 1W at 105°C operating temperature
- Input voltage options: 12V, 15V, 24V with respective fuse ratings
- Output voltages: +15V/-9V, +15V/-5V, +19V/-5V, set via zener diode networks
- Built-in short circuit protection and thermal protection
- Operating temperature range: -40°C to 105°C
- Storage temperature: -55°C to 125°C
- Peak inverter voltage: exceeding 3kV for partial discharge testing
- Reinforced UL60950 insulation, creepage and clearance: 9mm
- Surface-mount package, 8-pin SMA footprint, dimensions detailed in datasheet
- Compliance with safety standards: UL 60950, pending UL recognition to ANSI/AAMI ES60601-1
- Legal for medical and industrial applications, high isolation and reliability features
Buy the Murata MGJ1D051510MPC – Reliable Isolated Power Supply for Industrial Applications
Buy Murata Power Solutions MGJ1D051510MPC online today to ensure reliable high-voltage power delivery for industrial and medical gate drive applications. These 1W surface-mount converters provide reinforced insulation up to 5700VDC, incorporate short circuit and thermal protections, and operate efficiently up to 105°C. With various input and output voltage configurations, they meet safety standards like UL 60950 and pending UL recognition for ANSI/AAMI ES60601-1. Invest in proven reliability and high isolation performance for your critical applications.
Get Murata MGJ1D051510MPC today—designed for high-voltage gate drive circuits with reinforced insulation and long-lasting durability.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS MGJ1D051510MPCR7?
You can click on the BUY or RFQ button to purchase MGJ1D051510MPCR7 from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MGJ1D051510MPCR7?
You can download the MGJ1D051510MPCR7 datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of MGJ1D051510MPCR7?
MURATA POWER SOLUTIONS
