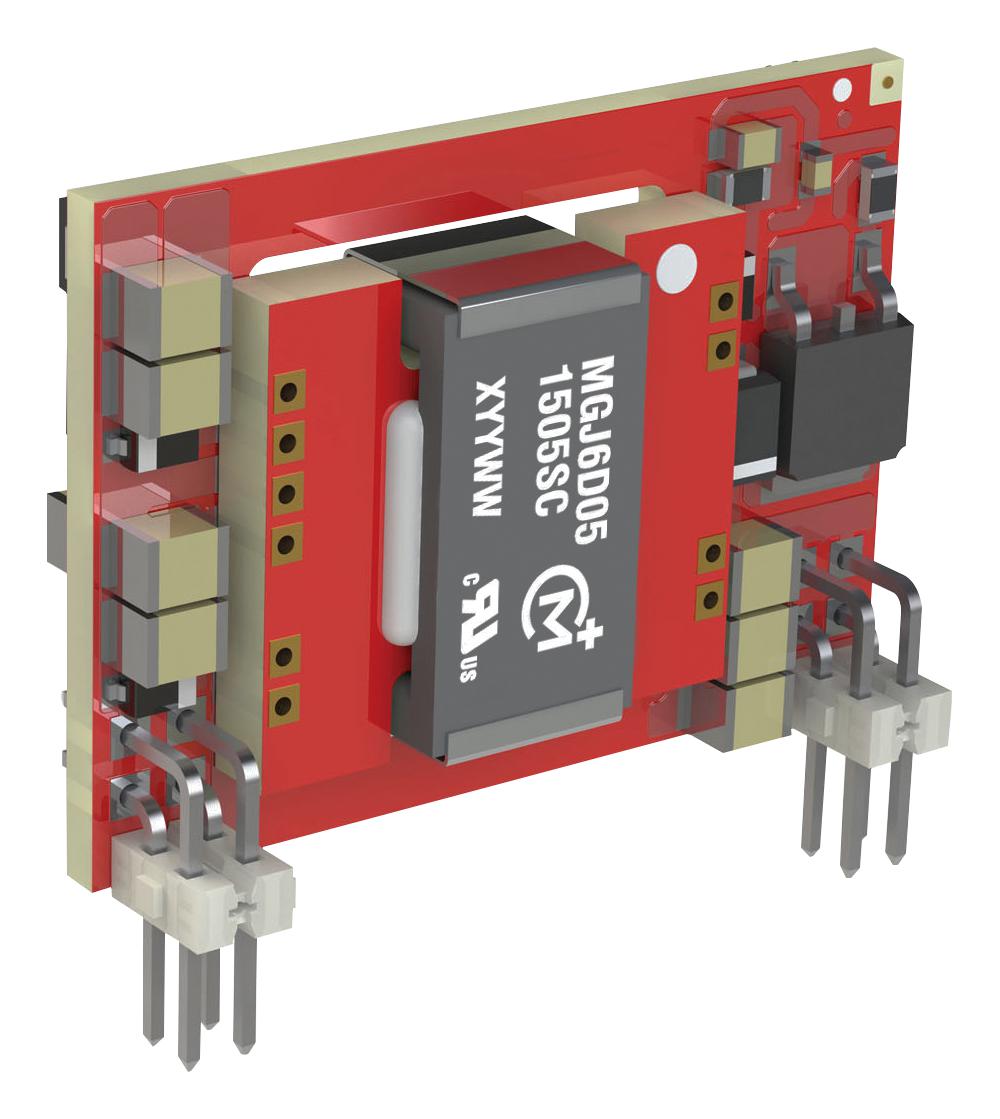

MURATA POWER SOLUTIONS MGJ6D122005SC High-Voltage Isolated DC-DC Converter
The MGJ6D122005SC is a Murata Power Solutions series 5.2 kVDC isolated DC-DC converter with a 6W power output, designed for high-voltage gate drive applications. It provides galvanic isolation of 5.2 kVDC, supports configurable dual outputs with asymmetric voltage options for optimal efficiency and EMI reduction. Suitable for motor drives and inverter circuits, it features high dv/dt immunity of 80 kV/µs at 1.6 kV, continuous short circuit protection, and a DC link voltage of 3 kVDC. Operating from -40°C to 105°C, it measures approximately 38.89mm x 10.9mm x 28.12mm and weighs about 12 grams, ensuring reliable high-voltage operation.
MURATA POWER SOLUTIONS MGJ6D122005SC High-Voltage Isolated DC-DC Converter Specifications:
- Isolation Voltage: 5.2 kVDC
- Power Rating: 6W
- Switching Frequency: 100 kHz
- Line Regulation: 2%
- Total Regulation: 15%
- Operating Temperature: -40°C to 105°C
- Dimensions: approximately 38.89mm x 10.9mm x 28.12mm
- Weight: about 12 grams
- Protection Features: Short circuit, overload
- Regulation: High dv/dt immunity of 80 kV/μs at 1.6 kV
- DC Link Voltage: 3 kVDC
- Line Regulation: 2%
- Maximum Input Voltage: 12V, 24V
- Operating Temperature Range: -40°C to 105°C
Buy the Murata 122005SC – Reliable High-Voltage Isolated DC-DC Converter for Industrial Applications
Purchase the Murata 122005SC online today—engineered for high-voltage isolation and reliable performance in motor drives and inverter circuits. This 6W converter offers galvanic isolation of 5.2 kVDC, configurable dual outputs, and exceptional dv/dt immunity of 80 kV/μs at 1.6 kV. With a broad operating temperature range from -40°C to 105°C, compact dimensions, and robust protection features including short circuit and overload protection, this converter ensures consistent, safe operation in industrial applications. Order now for high efficiency and durability.
Get Murata 122005SC today—built for precision, high voltage isolation, and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS MGJ6D122005SC?
You can click on the BUY or RFQ button to purchase MGJ6D122005SC from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MGJ6D122005SC?
You can download the MGJ6D122005SC datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of MGJ6D122005SC?
MURATA POWER SOLUTIONS
