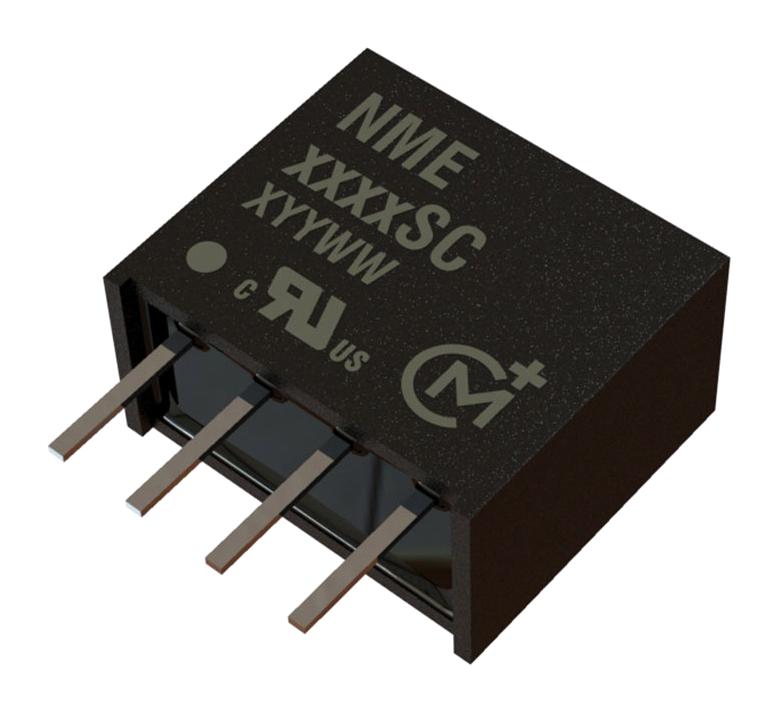

MURATA POWER SOLUTIONS NME0515SC isolated power converter
The NME series isolated DC/DC converters deliver 1 watt of power with 5V or 12V inputs and outputs of 5V, 9V, 12V, 15V, or 24V. Featuring galvanic isolation of 1KVDC, these fully encapsulated modules operate from -40°C to 85°C without heatsinks, making them ideal for compact power conversion in industrial systems. They assure high efficiency up to 80%, with no external components required, and are RoHS compliant, suited for isolating or converting DC rails in various electronic and automation applications.
MURATA POWER SOLUTIONS NME0515SC isolated power converter Specifications:
- Input Voltage Range: 5V or 12V
- Output Voltages: 5V, 9V, 12V, 15V, 24V
- Output Current: 66-200mA depending on model
- Isolation Voltage: 1KVDC, flash tested for 1 second
- Efficiency: up to 80%
- Operating Temperature Range: -40°C to 85°C
- Power Density: 1.53W/cm²
- Package Material: RoHS compliant UL 94V-0
- Isolation Resistance: >10 GΩ at 1000VDC
- Ripple & Noise: 50mVpp max at full load
- Size: 11.48mm x 9.80mm in DIP and SIP packages
- Mounting: PCB mount, compatible with industry standard pinouts
- MTTF: up to 3.4 million hours
- No heatsink required, internal SMD construction
Buy the Murata Series NME Isolated Power Supply: NME0515SC
Purchase the Murata NME0515SC isolated 1W DC/DC converter online today and enjoy reliable, compact power conversion for industrial, automation, and electronic systems. Designed for high efficiency up to 80%, these converters feature galvanic isolation of 1KVDC, operate across a wide temperature range from -40°C to 85°C, and require no external components. Their robust encapsulation and RoHS compliance ensure durability and environmental safety, making them an ideal choice for engineers seeking compact and dependable power modules in demanding applications.
Get Murata NME0515SC today—built for precision and high efficiency in industrial power conversion.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS NME0515SC?
You can click on the BUY or RFQ button to purchase NME0515SC from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part NME0515SC?
You can download the NME0515SC datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of NME0515SC?
MURATA POWER SOLUTIONS
