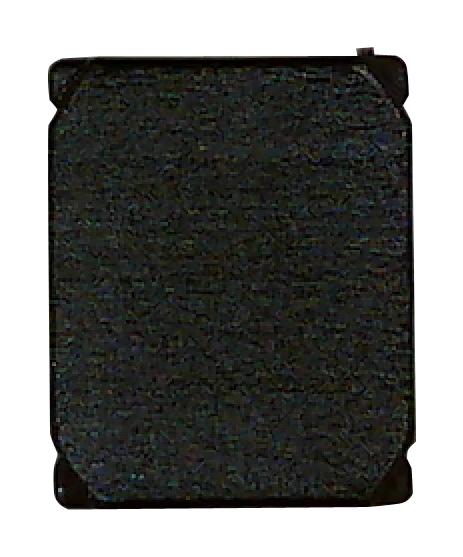

Murata LQH2HPN100MDRL high-frequency chip inductor
The LQH2HPN100MDRL is a high-quality multilayer chip inductor designed for compact electronic modules and precision electronic circuits. It features a rated current of 420mA at 85°C ambient temperature, with inductance precision within 430% of its initial value at 1MHz test frequency. The inductor boasts a low DC resistance of approximately 1.204Ω and operates within a temperature range of -40°C to 125°C. Its magnetic resin shield ensures stable magnetic performance, making it suitable for high-frequency applications requiring reliable inductance and minimal heat generation.
Murata LQH2HPN100MDRL high-frequency chip inductor Specifications:
- Inductance: 10μH ±20%
- Inductance test frequency: 1MHz
- Rated current (Isat): 420mA at 85°C ambient temperature, 430mA at 85°C
- Max. DC resistance: 1.440Ω
- Average DC resistance: 1.204Ω ±20%
- Self resonance frequency: 30MHz minimum
- Operating temperature range: -40°C to 125°C (including self-temperature rise), -40°C to 105°C (excluding self-temperature rise)
- Magnetic shield: Magnetic resin
- Size: 2.0mm x 0.55mm, height: 0.1mm
- Series: LOH2HPN_DR
- Package: Embossed taping, quantity: 4000 pieces
Buy the Buy Murata Inductor Part Number LQH2HPN100MDRL Online
Purchase the Murata high-frequency chip inductor Series LQH2HPN100MDRL online today to ensure your electronic designs benefit from high reliability, stable inductance, low heat generation, and excellent frequency response. This compact component is perfect for high-frequency applications, including RF circuits and power modules, offering a rated current of 420mA, low DC resistance, and a wide temperature range from -40°C to 125°C. Buy now for fast delivery and trusted quality.
Order your Murata SeriesLQH2HPN100MDRL high-frequency inductor today and secure reliable performance for your electronic projects.
Frequently Asked Questions
Where can I buy Murata LQH2HPN100MDRL?
You can click on the BUY or RFQ button to purchase LQH2HPN100MDRL from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQH2HPN100MDRL?
You can download the LQH2HPN100MDRL datasheet or visit the Murata website for support.
Who is the manufacturer of LQH2HPN100MDRL?
Murata
