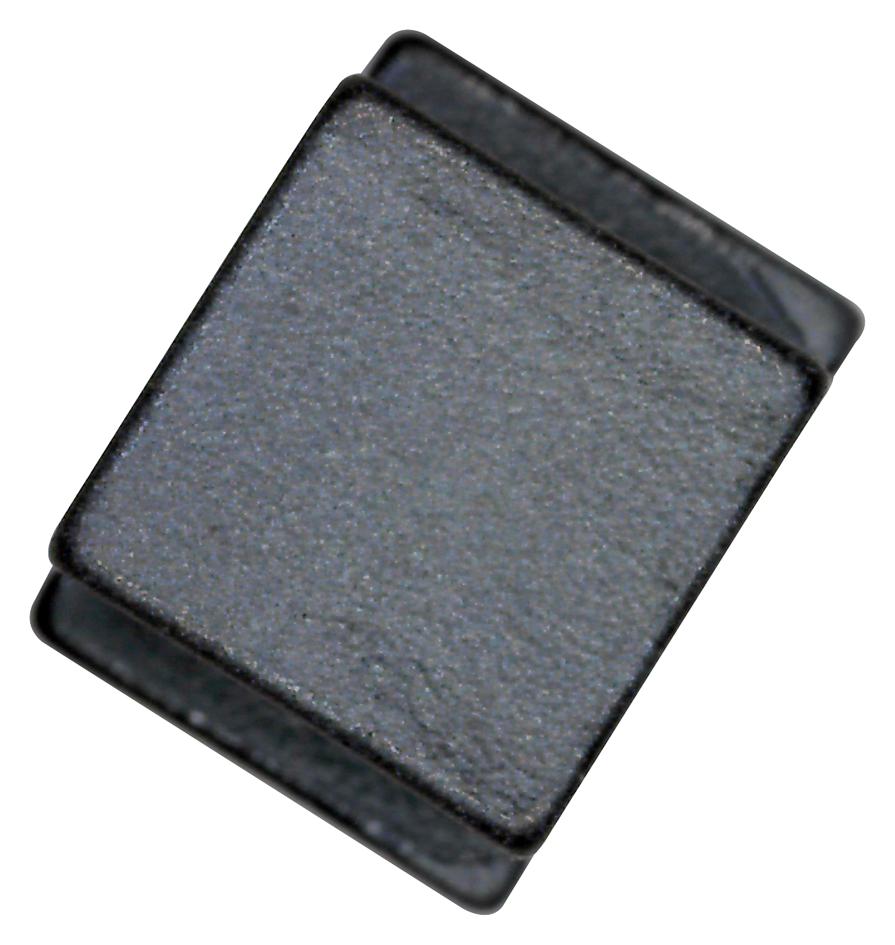

Murata LQH2HPZ150MDRL Multilayer Chip Inductor
The LQH2HPZ150MDRL is a compact, low-profile multilayer chip inductor designed for high-frequency applications. Featuring a size code of 2520 (1008 in mm), it provides an inductance of 15 μH with ±20% tolerance at 1 MHz test frequency. Its small dimensions of 2.5mm x 2.0mm and a thickness of 0.55mm make it ideal for space-constrained circuits. This inductor offers a rated current of 340mA, with a self-resonance frequency of 25MHz and low DC resistance, suitable for RF modules, filters, and power management units.
Murata LQH2HPZ150MDRL Multilayer Chip Inductor Specifications:
- Size Code: 2520 (1008 in mm)
- Dimensions: 2.5mm x 2.0mm x 0.55mm
- Inductance: 15μH ±20% at 1MHz
- Rated Current: 340mA
- Self-Resonance Frequency: 25MHz
- DC Resistance: Low (approx. 2.5Ω at 20°C)
- Operating Temperature Range: 40°C to 125°C
- Material: Magnetic resin shield
- Temperature Rise: Max 20°C at 85°C ambient, Max 40°C at 105°C ambient
- Test Frequency: 1MHz
- Package Quantity: 4000 pcs/reel
- Mass: 0.01g per piece
Buy the Buy Murata LQH2HPZ150MDRL Part Number 150μH Online
Purchase the Murata LQH2HPZ150MDRL multilayer chip inductor online today and experience exceptional high-frequency performance. Its compact size of 2.5mm x 2.0mm x 0.55mm makes it perfect for space-constrained circuits. With a 15μH inductance and a rated current of 340mA, this inductor is ideal for RF modules, filters, and power supply applications. Its low DC resistance and high self-resonance frequency of 25MHz ensure stable operation in demanding environments, providing dependable quality for your designs.
Order your Murata SeriesLQH2HPZ150MDRL inductor today and enhance your RF and power management projects with reliable, high-frequency performance.
Frequently Asked Questions
Where can I buy Murata LQH2HPZ150MDRL?
You can click on the BUY or RFQ button to purchase LQH2HPZ150MDRL from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQH2HPZ150MDRL?
You can download the LQH2HPZ150MDRL datasheet or visit the Murata website for support.
Who is the manufacturer of LQH2HPZ150MDRL?
Murata
