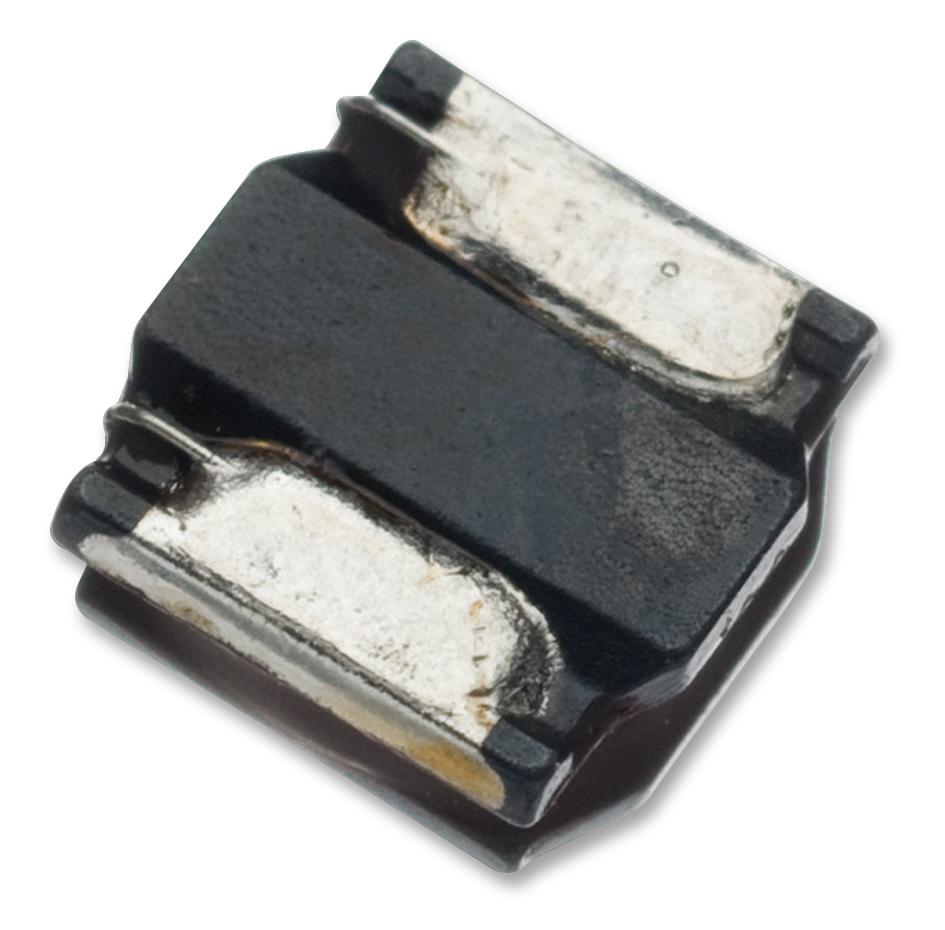

Murata LQH43PN101M26L Power Inductor
This power inductor features a 1812 size chip coil construction with inductance values ranging from 1μH to 220μH, suitable for high-frequency filtering and energy storage in electronic circuits. It offers various inductance options, with rated currents between 320mA and 3400mA, and low DC resistance from 0.026Ω to 0.327Ω. Manufactured by Murata, this wire-wound type chip inductor has a compact form factor, operates within -40°C to +85°C, and is protected with a magnetic powder shield for improved performance. Ideal for compact electronic designs requiring high reliability.
Murata LQH43PN101M26L Power Inductor Specifications:
- Size: 1812 (4.5mm x 3.2mm)
- Inductance Range: 1μH to 220μH
- Inductance Tolerance: ±20% or ±30%
- Rated Current: 320mA to 3400mA
- DC Resistance: 0.026Ω to 0.327Ω
- Operating Temperature Range: -40°C to +85°C
- Magnetic shield: Magnetic powder in resin
- Test Frequency: up to 10 MHz
- Inductance-Current Characteristics: Up to rated current, inductance within ±20% of nominal
- Size code: 1812
- Material: Wire-wound with magnetic shield
- Application: General electronic equipment, filtering, energy storage
- Compliance: RoHS compatible
Buy the Buy Murata Power Inductor Part Number LQH43PN101M26L Online
Enhance your electronic projects with Murata's high-quality power inductor, SeriesLQH43PN101M26L. Featuring a compact 1812 size, it provides inductance from 1μH to 220μH, rated currents up to 3400mA, and low DC resistance for optimal performance. Suitable for high-frequency filtering and energy storage, it is protected with a magnetic powder shield for improved magnetic performance. Operates reliably from -40°C to +85°C, complying with RoHS standards. Purchase online now for dependable quality in your electronic applications.
Order your Murata SeriesLQH43PN101M26L high-frequency power inductor today and enhance your electronic designs with reliable and compact components.
Frequently Asked Questions
Where can I buy Murata LQH43PN101M26L?
You can click on the BUY or RFQ button to purchase LQH43PN101M26L from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQH43PN101M26L?
You can download the LQH43PN101M26L datasheet or visit the Murata website for support.
Who is the manufacturer of LQH43PN101M26L?
Murata
