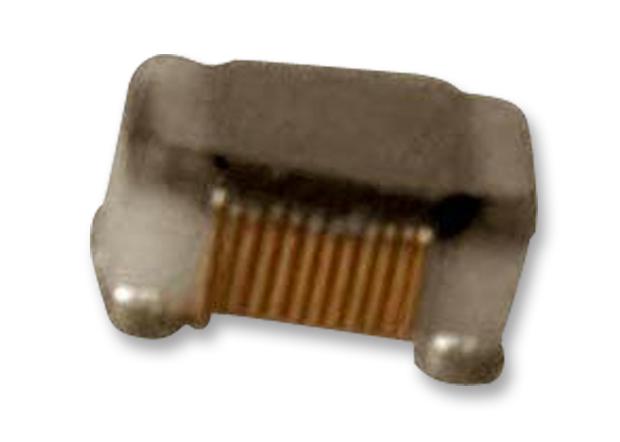

Murata LQW2BAN56NG00L RF Inductor
The LQW2BAN56NG00L is a compact 0805 size, high-performance horizontal wound inductor designed for RF applications. It features an inductance of 56nH with a 2% tolerance, a maximum DC resistance of 0.180 ohms, and a rated current of 1260mA. Suitable for high-frequency circuits, it operates within a temperature range that requires derating above 85°C. Its precise construction ensures low self-resonance frequency and stable inductance, making it ideal for mobile devices, wireless modules, and communication systems requiring reliable RF filtering and impedance matching.
Murata LQW2BAN56NG00L RF Inductor Specifications:
- Size: 2.0 x 1.5 x 1.4 mm (0805/2015)
- Inductance: 56nH
- Inductance Tolerance: ±2%
- Test Frequency: 200MHz
- Rated Current: 1260mA
- Max. DC Resistance: 0.180 ohms
- Self-Resonance Frequency: 1600MHz
- Operating Temperature Range: -55°C to +85°C (derating above 85°C required)
- Q-min: 70
- Impedance: varies with frequency
- Series: LQW2BAN
- Packaging: Bulk (500 pcs), Embossed Tape (2000 pcs), Embossed Tape (8000 pcs)
Buy the Murata Series RF Inductor: LQW2BAN56NG00L
Enhance your electronic designs with the Murata RF Inductor. This 0805 size inductor provides 56nH of inductance with high precision, low resistance, and excellent high-frequency performance. Rated for 1260mA, it ensures stable operation in wireless modules, communication devices, and RF circuits. Its compact size makes it ideal for space-constrained applications, while its temperature derating ensures reliability under various operating conditions. Purchase online now to upgrade your RF and wireless projects with proven Murata quality.
Order your Murata Series RF Inductor LQW2BAN56NG00L today and enhance your wireless communication projects with reliable RF filtering components.
Frequently Asked Questions
Where can I buy Murata LQW2BAN56NG00L?
You can click on the BUY or RFQ button to purchase LQW2BAN56NG00L from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQW2BAN56NG00L?
You can download the LQW2BAN56NG00L datasheet or visit the Murata website for support.
Who is the manufacturer of LQW2BAN56NG00L?
Murata
