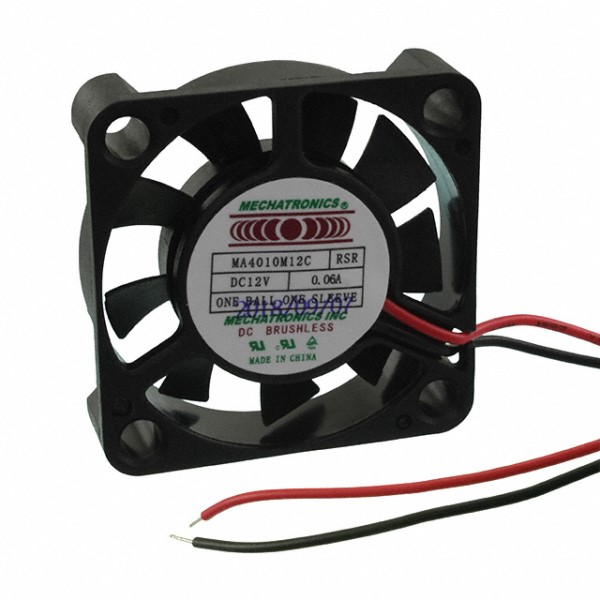

Mechatronics MA4010M12CRSR DC Brushless Fan
The MECHATRONICS MA4010M12C-RSR is a series of compact DC brushless fans engineered for reliable and efficient cooling in a variety of industrial applications. Constructed with a UL94V-0 PBT impeller and frame, these fans offer durability and flame retardancy. They are available with either ball bearing or sleeve bearing options, and connection is provided via AWG 26, UL1007 lead wires. Options include tachometer output or a locked rotor alarm signal. These fans are ideal for applications requiring quiet and efficient airflow.
Mechatronics MA4010M12CRSR DC Brushless Fan Specifications:
- Series: MA4010
- Dimensions: 40 x 40 x 10 mm (1.57 x 1.57 x 0.39 inches)
- Air Volume: 0.09 - 0.14 M³/Min
- Max Static Pressure: 140 mm H2O
- Noise Level: 23 - 26 dB
- Weight: 20 g
- Rated Voltage: 5 - 12 V
- Operating Voltage: 3 - 6.5 / 7 - 13.8 V
- Rated Current: 55 - 70 mA
- Speed: 4000 - 6000 RPM
- Bearing Type: Ball Bearing or Sleeve
- Connection: AWG 26, UL1007 lead wires
- Frame Material: Ribbed PBT
- Impeller Material: UL94V-0 PBT
Buy the MA4010M12C-RSR MECHATRONICS DC Brushless Fan | myMectronic
Purchase the MECHATRONICS MA4010M12C-RSR securely and reliably through our online store.
Buy Now
Frequently Asked Questions
Where can I buy Mechatronics MA4010M12CRSR?
You can click on the BUY or RFQ button to purchase MA4010M12CRSR from an authorized Mechatronics distributor.
How do I troubleshoot issues or seek technical support for part MA4010M12CRSR?
You can download the MA4010M12CRSR datasheet or visit the Mechatronics website for support.
Who is the manufacturer of MA4010M12CRSR?
Mechatronics
