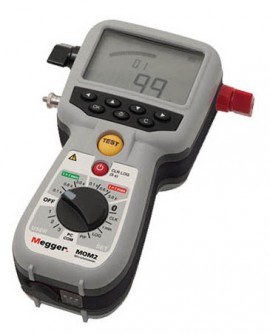

MEGGER BD59093 Micro-ohmmeter
The Megger BD-59093 is a rugged, lightweight handheld micro-ohmmeter ideal for field applications such as substation maintenance. Designed for measuring contact resistance across low, medium, and high-voltage breakers, bus-bar joints, and high-current links, it delivers up to 240 A for accurate resistance testing. Equipped with DualGround technology, it ensures safe testing by grounding both sides of the test object simultaneously, minimizing testing time and enhancing safety. Features include auto-ranging from 1 milliohm to 1000 megaohms, high-current generation via ultra capacitor technology, Bluetooth data transfer, and a built-in memory for storing up to 190 test results. Supplied with Kelvin clamps for four-wire Kelvin testing, it is portable, battery-powered, and compliant with IEEE and IEC standards. Suitable for testing circuit breakers, bus-bars, switches, disconnectors, safety grounds, welding points, fuses, and cables.
MEGGER BD59093 Micro-ohmmeter Specifications:
- Application field: High-voltage substations and industrial environments
- Operating temperature: -2°C to +50°C (4°F to 122°F)
- Storage temperature: -20°C to +70°C (4°F to 158°F)
- Relative humidity: 5% to 95%, non-condensing
- Pollution degree: 2
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Transport: ISTA 2A
- Battery power: Five AA NiMH cells, <12 hours recharge time
- Power consumption: 3W
- Dimensions: 217 x 104.7 x 41 mm (8.5 x 4.1 x 1.6 inches)
- Weight: 2.2 lbs (1 kg) instrument only, 11 lbs (6 kg) with accessories
- Measurement range: 0-999 pQ, 1.09-99.9 mQ
- Output current: Selectable 50 A / 100 A, up to 240 A current generation
- Resistance measurement: 0-1000 mQ, accuracy ±1%
- Auto range: Yes
- Resolution: 0.01 mQ
- Communication: Bluetooth, PC interface
- Memory: Stores up to 190 measurements
- Protection: Against wrong battery, low/high temperature
- Compliance: CE, EMC 2004/108/EC, LVD 2006/95/EC
Buy the Megger BD-59093 – Reliable Micro-ohmmeter for Industrial Applications
Purchase the Megger BD-59093 micro-ohmmeter online to ensure accurate contact resistance measurements in field conditions. This lightweight, rugged device offers safe DualGround technology, Bluetooth data transfer, and a 190-test memory. Equipped with Kelvin clamps for four-wire testing and high-current generation via ultra capacitor technology, it is ideal for substation maintenance, circuit breaker testing, bus-bar connections, and other high-current applications. Its portability, compliance with international standards, and user-friendly features make it an indispensable tool for electrical professionals seeking reliable, precise measurement capability in demanding environments.
Get Megger BD-59093 today—built for precise high-current resistance testing in industrial environments.
