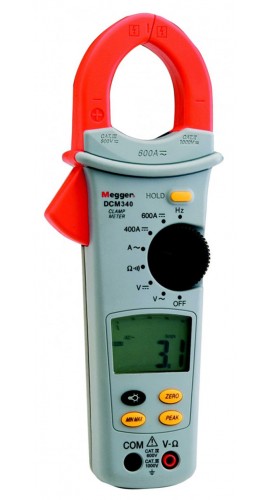

MEGGER DCM340 Digital Clampmeter
The Megger DCM340 is a versatile electrical measurement tool designed for accurate testing of AC and DC currents, voltages, resistance, and continuity in various systems. Featuring a 3½ digit, 4000 count backlit display and a high-resolution digital bar graph, it allows monitoring of trending and fluctuations. Equipped with functions like peak, min/max, data-hold, and auto-off, it ensures efficient operation in installation, maintenance, and fault detection tasks. Safety-rated IEC 61010-1 Cat III 600 V and drop-tested for durability, it's ideal for electricians and technicians working on industrial, commercial, and residential electrical infrastructure.
MEGGER DCM340 Digital Clampmeter Specifications:
- AC Current Range: 0-60.0A ±1.9%, 60.0-400.0A ±1.9%, 400-600A ±2.5%
- DC Current Range: 0-60.0A ±15% +10 digits, 60.0-400.0A ±1.9%, 400-600A ±1.9%
- Voltage Range: 0-400V ±1.0%, 400-600V ±1.0%
- Input Impedance: 1 MΩ // < 100 pF
- Resistance Range: 0-400.02Ω ±1%
- Open Circuit Voltage: 3V
- Continuity Check: Buzzer sounds at <30Ω
- Peak Hold: Yes, 10ms sample rate
- Min/Max Hold: Yes
- Display: 3½ digit, 4000 count, backlit
- Bar Graph: High-resolution digital
- Overload Protection: 600V & 600A
- Operating Temperature: 0°C to 40°C, Storage: -20°C to +60°C
- Drop Test: 1.2m onto hardwood
- Dimensions: 68mm(W) x 237mm(H) x 42mm(D)
- Weight: 225g including batteries
- Power: 1 x 9V alkaline battery (approx. 200 hours)
- Safety Standard: IEC 61010-1 Cat III 600V
- Calibration Period: 12 months
Buy the Megger DCM340 – Reliable Digital Clampmeter for Industrial Applications
Order the Megger DCM340 online today to ensure precise and reliable electrical measurements in installation, maintenance, and troubleshooting tasks. This versatile clampmeter combines AC and DC current, voltage, resistance, and continuity testing with a high-resolution display and digital bar graph for trending analysis. Equipped with peak, min/max, and data-hold functions, safety-rated IEC 61010-1 Cat III 600 V, and durable drop-testing, it’s perfect for electricians and technicians working on industrial, commercial, and residential electrical systems. Purchase now for efficient electrical diagnostics and maintenance performance.
Buy Megger DCM340 now and experience unmatched reliability and performance with versatile measurement features in electrical maintenance.
Frequently Asked Questions
Where can I buy MEGGER DCM340?
You can click on the BUY or RFQ button to purchase DCM340 from an authorized MEGGER distributor.
How do I troubleshoot issues or seek technical support for part DCM340?
You can download the DCM340 datasheet or visit the MEGGER website for support.
Who is the manufacturer of DCM340?
MEGGER
