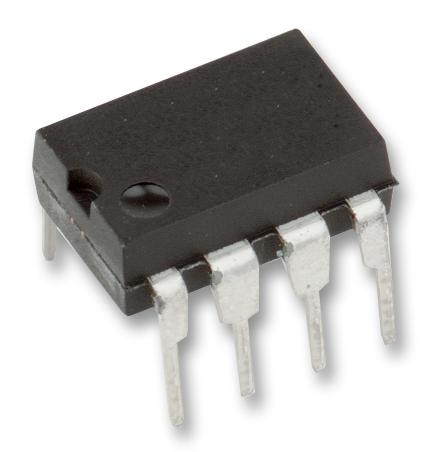

Microchip Technology 24LC65P Serial EEPROM
The 24LC65P is a 64K-bit serial EEPROM with advanced low-power CMOS technology, supporting industry standard I2C protocol. It features an input cache for fast writes, programmable security, high endurance blocks, and operates over a voltage range of 1.8V to 6.0V. The device includes one high endurance 4K block capable of 10 million erase/write cycles, multiple security options, and supports up to eight devices on the same bus for up to 512K bits total. It is available in 8-pin PDIP and SOIC packages, suitable for low-power, high-reliability data storage in automotive, industrial, and communication systems.
Microchip Technology 24LC65P Serial EEPROM Specifications:
- Voltage Operating Range: 1.8V to 6.0V
- Page Size: 64 Bytes
- Temperature Range: -40°C to +125°C (Automotive), -40°C to +85°C (Industrial)
- Number of Write Cycles: 1,000,000 for standard, 10,000,000 for high endurance block
- Data Retention: > 200 years
- I2C Protocol Compatibility: 100 kHz and 400 kHz modes
- Input Cache: 64 bytes (8 pages x 8 bytes)
- Package Types: 8-pin PDIP, SOIC
- Peak Write Current: 3 mA at 6.0V
- Maximum Read Current: 150 pA at 6.0V
- Standby Current: 1 μA typical
- Electrostatic Discharge Protection: > 4000V
- Endurance: 10 million cycles for high endurance block, 1 million cycles for rest
- Power-on/off Data Protection Circuitry
Buy the Microchip Series 24AA65P: 64K Serial EEPROM
Purchase the Microchip 24LC65P online today—engineered for high reliability and low power operation. Its advanced CMOS technology supports fast writes with an 8-page cache and offers programmable security features. Ideal for applications requiring high endurance, secure data protection, and operation over a wide voltage range. This 64K-bit EEPROM supports both industrial and automotive temperature ranges, comes in compact 8-pin PDIP or SOIC packages, and is perfect for implementing persistent data storage in complex electronic systems. Order now for fast delivery and expert support.
Get Microchip 24LC65P today—designed for reliable data storage, high endurance, and low power consumption in industrial and automotive systems.
Frequently Asked Questions
Where can I buy Microchip Technology 24LC65P?
You can click on the BUY or RFQ button to purchase 24LC65P from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part 24LC65P?
You can download the 24LC65P datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of 24LC65P?
Microchip Technology
