Microchip Technology MCP1252DMBKLT LED Backlight Controller

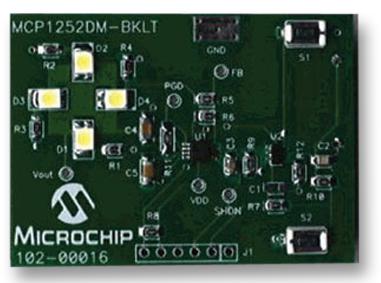

The MCP1252DM-BKLT demonstration board features the MCP1252-ADJ charge pump for LED backlighting applications, providing uniform brightness control, low noise, and high efficiency. It uses a PIC10F206 microcontroller to manage LED intensity via pulse-width modulation and standby mode. Equipped with four white LEDs and a programmable interface, users can select five brightness levels or turn the system off, all powered by three AAA batteries. It supports firmware reprogramming, making it ideal for portable lighting, power management, and embedded projects requiring adjustable low-power LED backlight solutions.
Microchip Technology MCP1252DMBKLT LED Backlight Controller Specifications:
- Charge pump technology with feedback control for adjustable voltage
- Outputs up to 120 mA current
- Low noise, high efficiency design
- Requires only one external capacitor
- Uses PIC10F206 microcontroller in SOT23 package
- Controls four white LEDs with five brightness levels
- Pulse-width modulation for dimming
- Supports low power standby mode (<1 microampere) in sleep
- Powered by 3 AAA batteries (not included)
- Supports firmware reprogramming via dedicated header
- Compact, inductorless design suitable for portable devices
Buy the Microchip MCP1252DMBKLT – Reliable LED Backlight Control for Industrial Applications
Purchase the Microchip MCP1252DMBKLT demo board online today to experience a versatile, low-noise charge pump solution for LED backlighting. This board provides adjustable brightness, efficient power management, and easy firmware reprogramming. Ideal for portable electronics, embedded systems, and energy-efficient lighting in industrial and consumer applications. With four white LEDs and energy-saving sleep mode, it ensures long battery life and reliable performance. Enhance your projects with this compact, high-efficiency LED driver platform that combines simplicity and advanced control features.
Get Microchip MCP1252DMBKLT today—built for precision, low noise, and long-lasting durability in LED backlighting solutions.
Frequently Asked Questions
Where can I buy Microchip Technology MCP1252DMBKLT?
You can click on the BUY or RFQ button to purchase MCP1252DMBKLT from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP1252DMBKLT?
You can download the MCP1252DMBKLT datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP1252DMBKLT?
Microchip Technology
