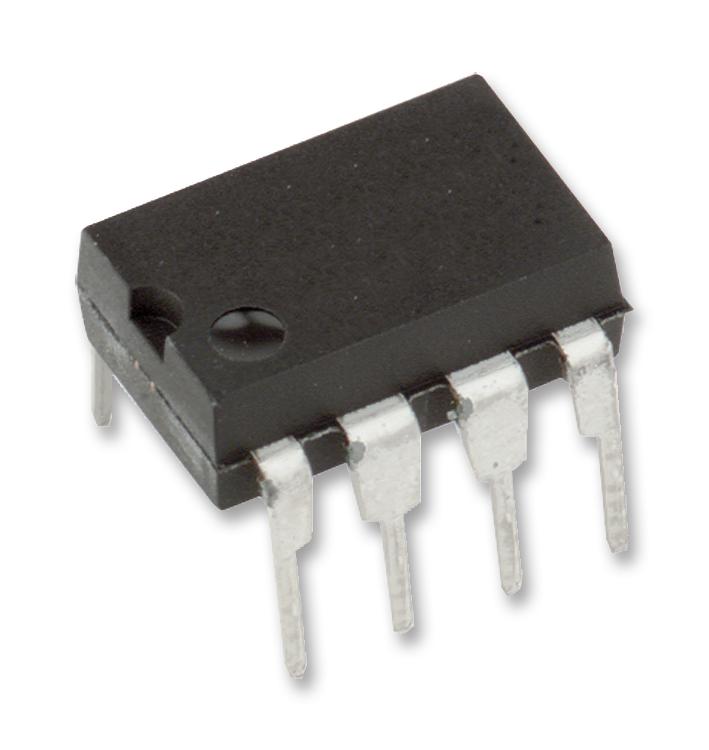

Microchip Technology 25LC160CIP Serial EEPROM Memory
The 25LC160C is a 16K byte Serial EEPROM utilizing low-power CMOS technology, capable of operating at clock speeds up to 10 MHz. Designed for industrial and automotive applications, it features 2048 x 8-bit organization with adjustable block protections and built-in data protection circuitry, including power-on reset. It supports sequential reads, page writes within the same physical page, and has endurance over 1 million write cycles with data retention exceeding 200 years. Suitable for microcontroller systems requiring reliable, low-power memory solutions with multiple package options, all RoHS compliant.
Microchip Technology 25LC160CIP Serial EEPROM Memory Specifications:
- Memory Size: 16K bytes
- Organization: 2048 x 8-bit
- Clock Speed: Max. 10 MHz
- Page Size: 16 or 32 bytes
- Write Cycle Time: Max. 5 ms
- Endurance: > 1 million erase/write cycles
- Data Retention: > 200 years
- Operating Voltage: 1.8V to 5.5V (25AA160C), 2.5V to 5.5V (25LC160C)
- Temperature Range: -40°C to +85°C (industrial), -40°C to +125°C (automotive)
- Package Options: PDIP, SOIC, MSOP, TDFN
- RoHS and Pb-Free Compliance
- ESD Protection: > 4000V
- Low Standby Current: 5 μA
- Self-timed erase/write cycles
- Block Write Protection
- Serial Interface: SPI-compatible
- Multiple package types for design flexibility
Buy the Microchip 25LC160C – Reliable EEPROM for Industrial Applications
Purchase the Microchip 25LC160C today and ensure your system benefits from reliable, low-power operation. With a 16K capacity, 10 MHz clock speed, and multiple packaging options, this EEPROM is ideal for industrial and automotive applications. Its endurance over 1 million cycles and data retention beyond 200 years guarantee long-term performance. Easy SPI interface and integrated protection features make it a perfect fit for microcontroller-based systems that demand efficiency and durability. Order now for fast delivery and support.
Get Microchip 25LC160C today—built for precision, low power, and long-lasting durability in your embedded systems.
Frequently Asked Questions
Where can I buy Microchip Technology 25LC160CIP?
You can click on the BUY or RFQ button to purchase 25LC160CIP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part 25LC160CIP?
You can download the 25LC160CIP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of 25LC160CIP?
Microchip Technology
