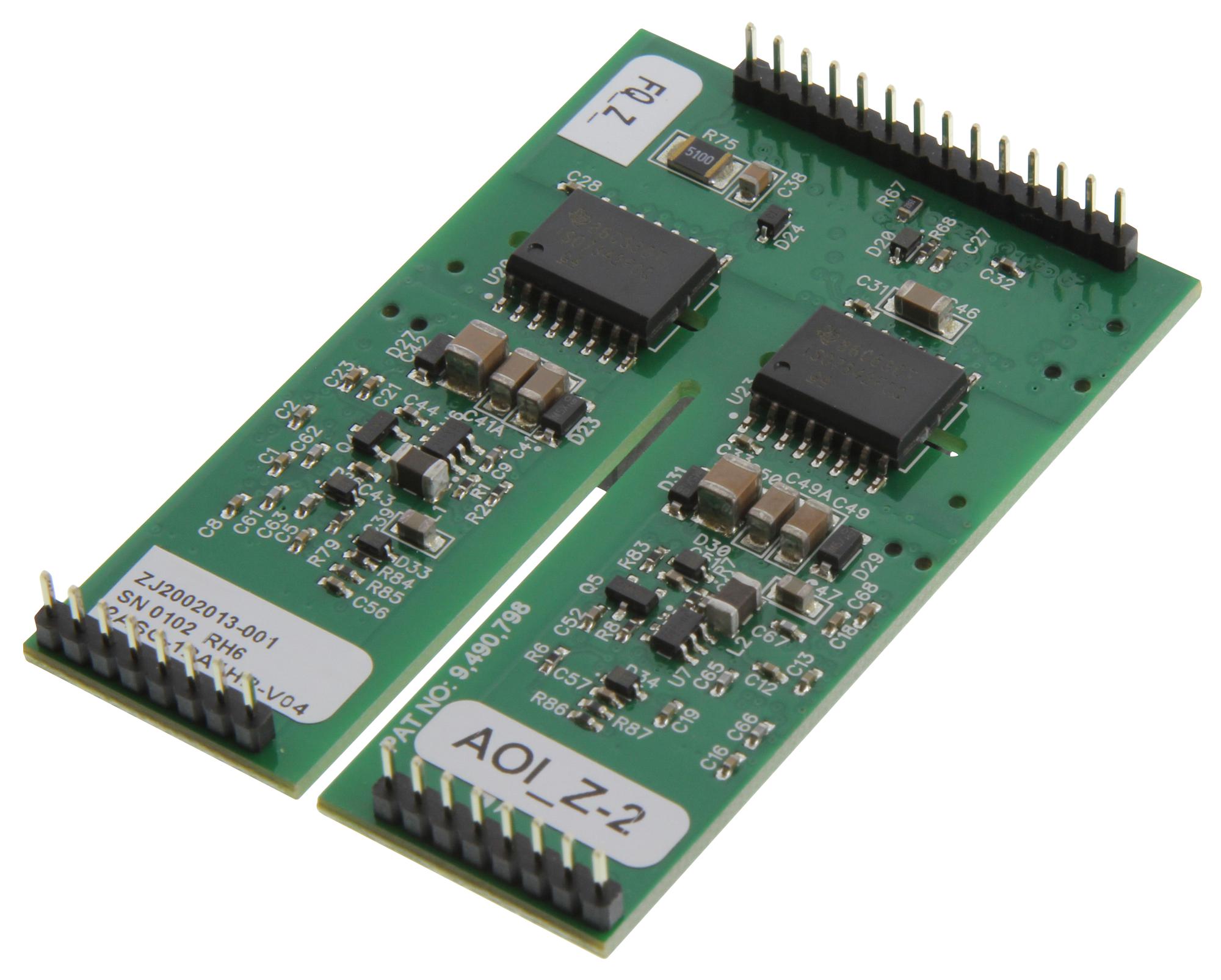

Microchip Technology 2ASC12A1HP Dual-channel Gate Driver
The AgileSwitch 2ASC-12A1HP is a highly reliable 1200V dual-channel gate driver core optimized for silicon carbide (SiC) MOSFET modules. It offers up to 10A peak current at 100kHz frequency, featuring software programmable fault detection, desaturation detection, and isolated high-voltage monitoring. Incorporating an isolated DC/DC converter, it ensures high noise immunity and precise control for power systems such as inverters, electric vehicles, and induction heating. Its compact 40x61mm form factor with RoHS compliance makes it ideal for demanding industrial applications requiring robust performance and safety features.
Microchip Technology 2ASC12A1HP Dual-channel Gate Driver Specifications:
- Supply Voltage: 0 to 16.5 V
- Peak Gate Current: -10 to 10 A
- Input Logic Levels: -0.5 to 5 V
- Output Power per Gate: 3 W
- Switching Frequency: Up to 100 kHz
- Isolation Voltage: Minimum 3750 VAC RMS
- Working Voltage: 1200 V
- Creepage Distance: 8 mm
- dV/dt Rate: 100 kV/us
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +90°C
- Dimensions: 40 mm x 61 mm
- RoHS compliant
- Software configurable fault and protection parameters
- Integrated desaturation and short-circuit protection circuits
- Isolated temperature and DC link voltage monitoring outputs
Buy the AgileSwitch 2ASC-12A1HP – Reliable SiC Gate Driver for Industrial Applications
Purchase the AgileSwitch 2ASC-12A1HP online now to ensure dependable control and protection for your SiC MOSFET-based systems. This advanced driver core features up to 10A peak current, extensive fault detection, isolated high-voltage monitoring, and software customizable protections. Its compact design and RoHS compliance make it ideal for demanding industrial applications such as inverters, electric vehicles, or induction heating units. Buy online today to upgrade your power electronics with a trusted, high-performance SiC gate driver proven to deliver safety, robustness, and precision in challenging environments.
Order your AgileSwitch 2ASC-12A1HP dual-channel SiC gate driver today and enhance your power system’s control and protection with high reliability and safety.
Frequently Asked Questions
Where can I buy Microchip Technology 2ASC12A1HP?
You can click on the BUY or RFQ button to purchase 2ASC12A1HP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part 2ASC12A1HP?
You can download the 2ASC12A1HP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of 2ASC12A1HP?
Microchip Technology
