Microchip Technology MCP47FVB2820EST Voltage DAC
The MCP47FVB28 is a high-precision octal-channel voltage output DAC with 12-bit resolution, featuring nonvolatile EEPROM memory and a low power, rail-to-rail output buffer. It supports multiple reference voltage sources, including internal band gap, external buffered or unbuffered input, and device Vpp, allowing flexible voltage range configurations. Its advanced WiperLock technology secures settings against inadvertent modifications. Designed for applications requiring accurate, stable voltage outputs with power-efficient operation, it communicates via an I2C interface supporting high-speed modes up to 3.4 Mbps and is suitable for calibration, automation, and low-power instrumentation.
Microchip Technology MCP47FVB2820EST Voltage DAC Specifications:
- Resolution: 12-bit (4096 steps)
- Channels: 8 (octal output)
- Operating Voltage: 2.7V to 5.5V (full), 1.8V to 2.7V (reduced specs)
- Output Type: Buffered, rail-to-rail op amp
- Reference Voltage Sources: internal band gap (1.22V typical), external buffered/unbuffered, device Vpp
- EEPROM Memory: Yes, nonvolatile memory for configuration and DAC values
- Communication Interface: I2C compatible, supports standard (100 kHz), fast (400 kHz), and high-speed modes up to 3.4 Mbps
- Power Consumption: Typical active current 1.8 mA, power-down mode current ~680 nA
- Package: 20-pin TSSOP and VQFN, Pb-free
- Operating Temperature Range: -40°C to +125°C
- Input Voltage Range: Vss to Vpp, with buffered or unbuffered reference options
- Output Buffer Gain: selectable 1x or 2x via configuration bits
- WiperLock Security: Secures DAC and configuration settings against inadvertent write
- Power-up Reset/ Brown-out Reset: Yes, with configurable reset delay

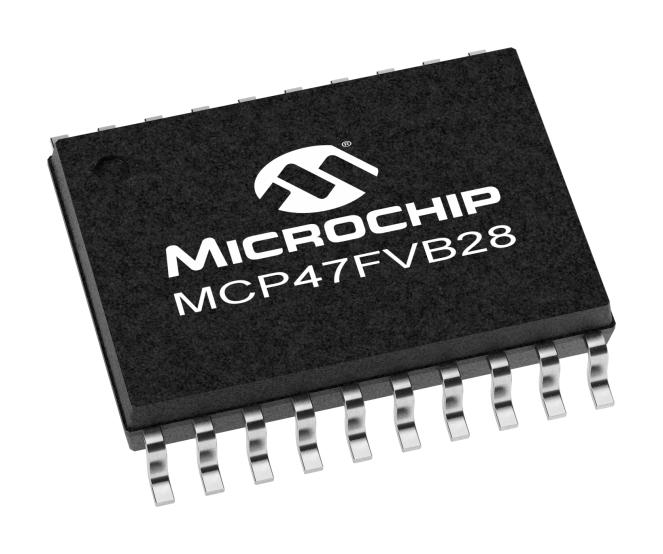

Buy the Buy Microchip MCP47FVB28 Part Number MCP47FVB2820EST Online
Purchase the Microchip MCP47FVB28 today and benefit from high-resolution octal-channel voltage output with EEPROM memory, supporting a flexible voltage reference selection, advanced security through WiperLock, and high-speed I2C communication up to 3.4 Mbps. Its low power consumption and wide operating temperature range make it ideal for calibration, automation, and low-power instrumentation. Ensure your projects maintain accuracy, security, and efficiency with this reliable, industry-standard digital-to-analog converter available for online ordering.
Order your Microchip MCP47FVB28 EEPROM-enabled 12-bit octal DAC today and ensure precise voltage control with secure configuration features for your critical applications.
Frequently Asked Questions
Where can I buy Microchip Technology MCP47FVB2820EST?
You can click on the BUY or RFQ button to purchase MCP47FVB2820EST from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP47FVB2820EST?
You can download the MCP47FVB2820EST datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP47FVB2820EST?
Microchip Technology
