Microchip Technology 62CA1 SiC Driver Core Adapter
This 1200V, 62mm core adapter board is designed for the 2ASC-12A1HP Silicon Carbide (SiC) driver core, providing a quick evaluation and plug-and-play interface for 62mm SiC modules. It features UL compliance, a dual-channel, high noise immunity, and a robust design, making it ideal for testing and integrating WBG power modules efficiently. The board simplifies design implementation, enabling seamless project development with reliable SiC MOSFET modules in high-voltage applications, supporting rapid prototyping and system validation.
Microchip Technology 62CA1 SiC Driver Core Adapter Specifications:
- Supply Voltage VCC to GND: 0 to 16.5 V
- Peak Gate Current: -20 to 20 A
- Input Logic Levels to GND: -0.5 to 15 V
- Switching Frequency: up to 100 kHz
- Working Voltage Primary to Secondary: 1200 V
- Creepage Distance: 8 mm
- dV/dt Rate of change: 100 kV/us
- Operating Temperature: -40 to +85 °C
- Storage Temperature: -40 to +90 °C
- Supply Current Without Load: 110 mA
- Supply Current With Load: 250 mA (typical)
- Input Impedance: 100 Q (SV), 2000 Q (15 V logic), 240 Q (differential)
- Fault Output Voltage: 0.3 to 24 V
- Max Switching Speed: 100 kHz

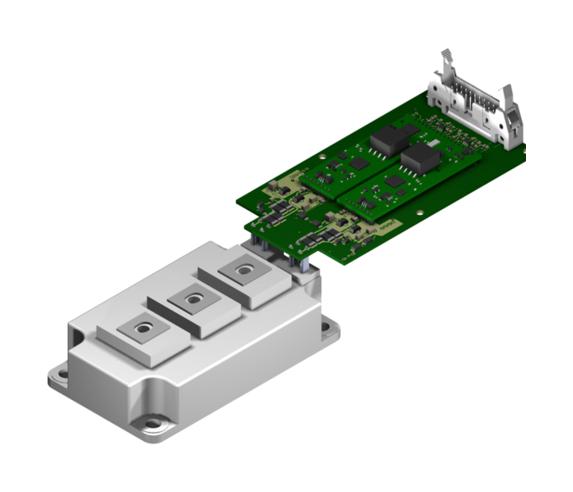

Buy the AgileSwitch Series 62CA1 SiC Driver Core Adapter: 62CA1
Enhance your power system design with the AgileSwitch 62CA1 SiC Driver Core Adapter, a versatile, UL compliant 62mm device for rapid evaluation of Silicon Carbide modules. This dual-channel adapter provides high noise immunity, high voltage capability up to 1200V, and a plug-and-play interface compatible with 62mm SiC modules. Its robust design supports efficient testing, system validation, and seamless integration in high-performance, high-voltage applications. Simplify development and ensure reliability with this essential evaluation tool for power electronics engineers.
Buy AgileSwitch 62CA1 now and experience unmatched reliability and performance with a robust, UL compliant high-voltage SiC driver core adapter.
Frequently Asked Questions
Where can I buy Microchip Technology 62CA1?
You can click on the BUY or RFQ button to purchase 62CA1 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part 62CA1?
You can download the 62CA1 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of 62CA1?
Microchip Technology
