Microchip Technology AC1620492 Programming Module

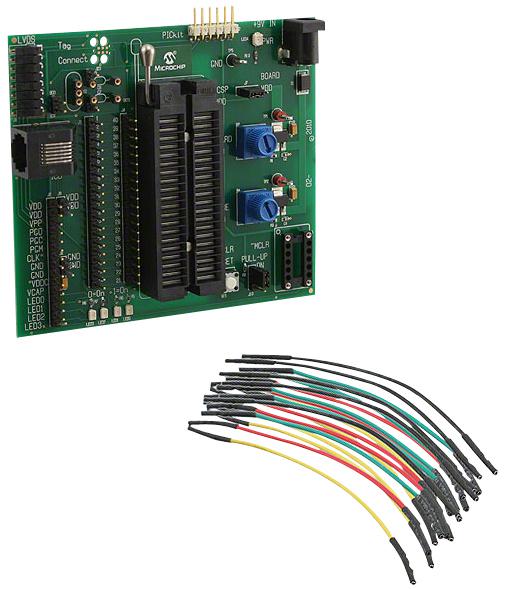

The Universal Programming Module 2 is a compact, versatile device designed for programming Microchip microcontrollers via MPLAB in-circuit emulators and debuggers. It features a Zero Insertion Force socket for DIP packages up to 40 pins and supports multiple connection interfaces, including ICSP, PICkit, Tag Connect, and others. The module includes adjustable regulators for Vpp and Vdd, rudimentary debugging resources like clock oscillator and reset circuitry, enabling reliable device programming and debugging in development environments. Compatible with various Microchip development tools, it offers flexible power options and straightforward device insertion/removal processes.
Microchip Technology AC1620492 Programming Module Specifications:
- Supports DIP packages up to 40 pins with ZIF socket
- Multiple debugger interfaces: J1 for ICD, J6 for LVDS, J22 for PICkit, J23 for Tag Connect
- Connections on J2 include PGC, PGD, Vpp, GND, PGM, VDDC, Vcap, CLK
- On-board adjustable regulators for Vpp (1.2V–5.5V) and VDDCORE (1.2V–2.75V)
- Optional power supply inputs for Vpp and core voltage regulation
- Includes rudimentary debugging resources: clock oscillator, reset pull-up, reset button, LEDs
- Supports insertion/removal of devices in ZIF socket with alignment and lock mechanisms
- Power supplied via debugger or on-board regulator, selectable via jumper J7
- Includes capacitor (0.1uF–10uF) for VpD-Vss stabilization
Buy the Microchip Series Universal Programming Module 2: AC1620492
Enhance your development setup with the Microchip Universal Programming Module 2, engineered for reliable device programming and debugging. Featuring multiple connection interfaces including ICSP, PICkit, and Tag Connect, it is ideal for microcontroller developers seeking flexibility. Its adjustable regulators allow precise voltage control for Vpp and Vdd, while on-board debugging resources simplify setup. Easy device insertion using the ZIF socket, combined with robust power options, ensures smooth operation. Purchase online now for efficient, professional-level microcontroller programming and debugging in your project workflow.
Get Microchip Universal Programming Module 2 today—built for precision and long-lasting durability, supporting versatile development and debugging needs.
