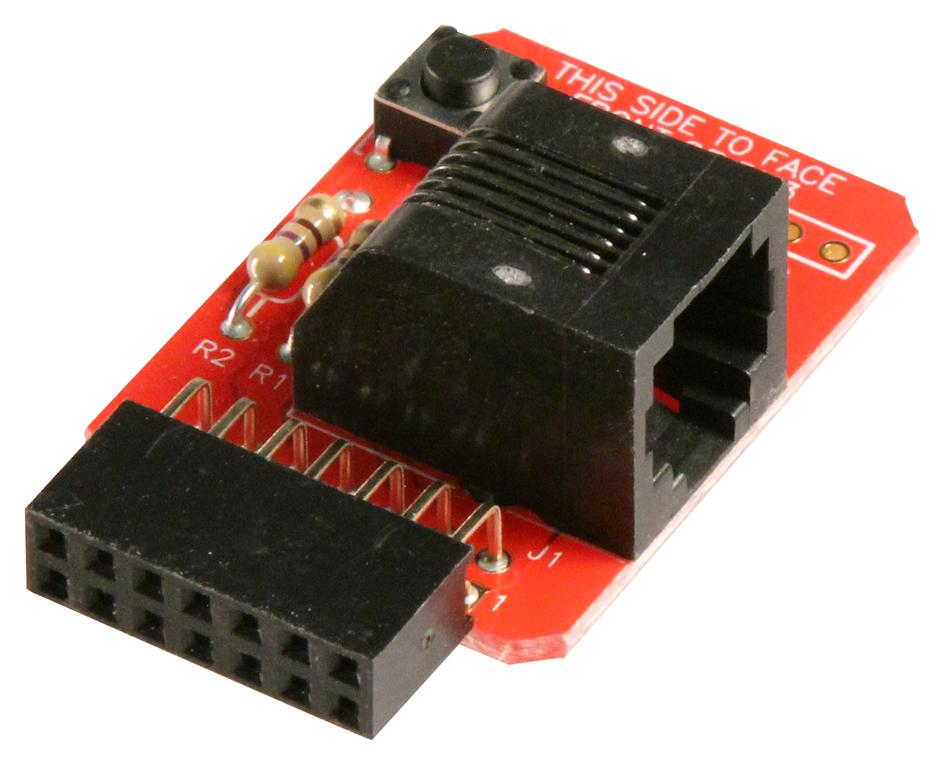

Microchip Technology AC164111 ICSP Converter
The AC164111 PM3 to ICSP converter is designed for programming Microchip microcontrollers using In-Circuit Serial Programming (ICSP). It features a 6-pin modular jack, RJ-11 connector interface, diagnostic LEDs for pass/fail indication, and a momentary ON push button to start programming. Compatible with Microchip devices, it operates as a reference voltage tool (50 mA) for programming setup. The device is not meant to power the target but facilitates easy connection between the programmer and the microcontroller for efficient programming and debugging.
Microchip Technology AC164111 ICSP Converter Specifications:
- 6 PIN modular jack interface
- RJ-11 connector for PM3 connection
- Diagnostic LEDs: PASS and FAIL indicators, 470 ohm resistors
- Momentary ON push button for starting programming
- Reference voltage only, 50 mA, not for powering target
- Face facing side includes indication for programming start
- Includes diagnostic LED indicators for pass/fail status
- Operating environment designed for Microchip programming tools
- Compatible with ICSP interface for PIC microcontrollers
- Device dimensions and connectors suited for development board integration
Buy the Microchip Series PM3 ICSP Converter: AC164111
Purchase the Microchip ICSP Converter AC164111 online today to streamline your microcontroller programming process. With its diagnostic LEDs, RJ-11 connector, and push button, it ensures easy setup and troubleshooting. Designed for efficiency, this converter connects seamlessly to Microchip development tools, facilitating quick and accurate programming of PIC microcontrollers. Invest in this reliable programming accessory to enhance your development workflow and ensure successful deployments. Order now to experience precise control and dependable performance for your embedded projects.
Get Microchip AC164111 today—built for precise microcontroller programming and reliable debugging in development setups.
Frequently Asked Questions
Where can I buy Microchip Technology AC164111?
You can click on the BUY or RFQ button to purchase AC164111 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part AC164111?
You can download the AC164111 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of AC164111?
Microchip Technology
