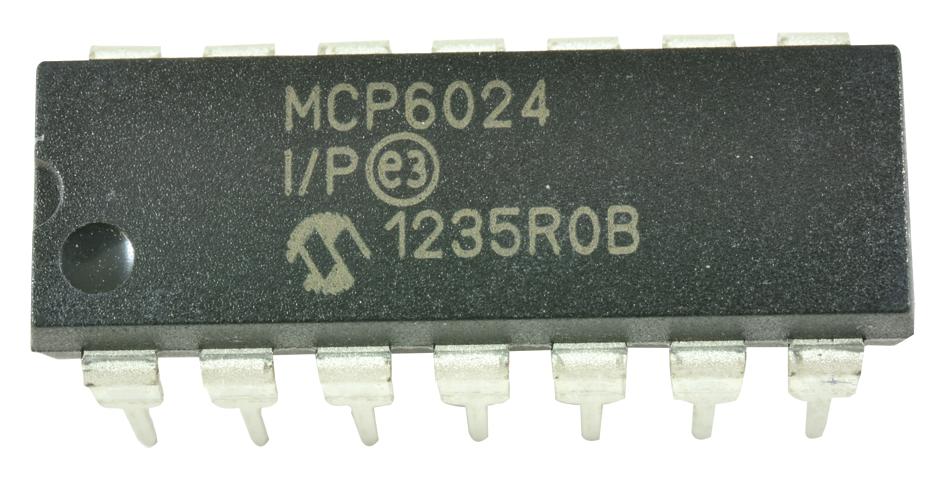

Microchip Technology MCP6024IP Quad Operational Amplifier
The MCP6024-I/P is a high-performance, quad rail-to-rail input/output operational amplifier with low offset voltage, high open-loop gain, and fast response times. Operating from a single supply as low as 2.5V, it consumes less than 1.35mA per amplifier. Features include low noise (8.7nV/√Hz at 10kHz), 0.00053% THD, and stability for unity gain configurations. It is ideal for battery-powered, medical, industrial, and automotive applications, offering exceptional low noise, speed, and power efficiency. Handling precautions are necessary due to ESD sensitivity, and lead times may vary due to market demand.
Microchip Technology MCP6024IP Quad Operational Amplifier Specifications:
- Configuration: Quad operational amplifier
- Supply Voltage Range: 2.5V to 5.5V
- Quiescent Current per Amplifier: Less than 1.35mA
- Input Offset Voltage: Less than 0.5mV
- Gain Bandwidth Product: 10 MHz
- Total Harmonic Distortion: 0.00053%
- Input Noise Voltage Density: 8.7 nV/√Hz at 10kHz
- Input Bias Current: Very low bias currents (typical 50 pA to 150 pA depending on temperature)
- Output Voltage Swing: Within 20mV of rail at 10kΩ load
- THD+N (at 1kHz, G=+1V/V): 0.00053%
- Operating Temperature Range: -40°C to +125°C (extended temp range)
- Package Types: 14-lead TSSOP, SOIC, PDIP, MSOP
- ESD Protection: Sensitive, handling precautions required
- Applications: Data acquisition, industrial automation, medical, automotive, audio, power management
Buy the Microchip Series MCP6024 High-Performance Quad Op Amp: MCP6024IP
Enhance your electronic designs with the Microchip Series MCP6024 quad rail-to-rail op amp. Offering low offset, noise, and distortion, it’s perfect for battery-powered, medical, and industrial applications. With a wide supply voltage range from 2.5V to 5.5V and low quiescent current, it delivers exceptional speed and accuracy in a compact package. Its low noise density and high open-loop gain make it suitable for sensitive data acquisition and medical instrumentation. Order online today to get reliable, high-performance op amps delivered swiftly to your door.
Order your Microchip Series MCP6024 quad rail-to-rail op amp today and ensure your projects benefit from high speed, low noise, and low power consumption for reliable performance.
