Microchip Technology ADM00421 USB-to-SPI Bridge Kit

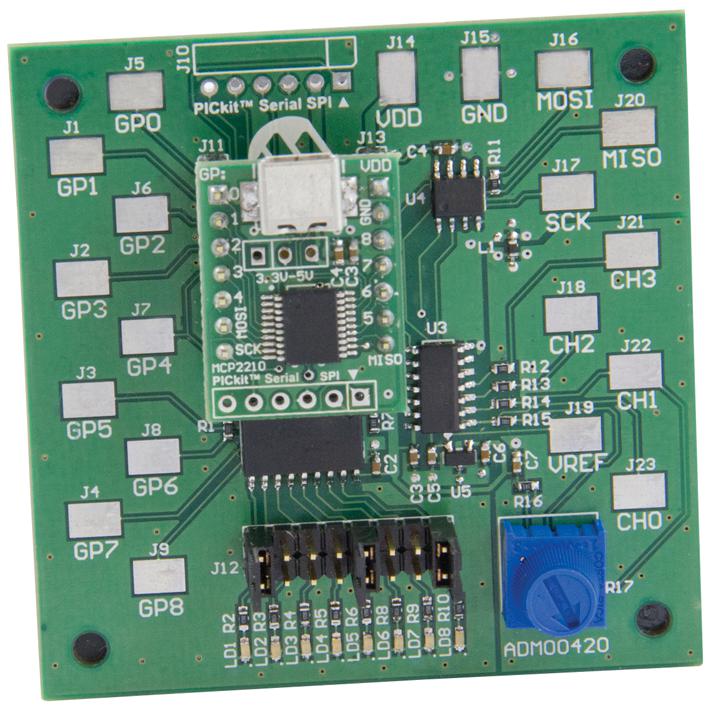

The MCP2210 Evaluation Kit is a comprehensive development platform for the MCP2210 USB-to-SPI bridge device. It includes two boards: a Breakout Board and a SPI Slave Motherboard, equipped with SPI slave devices like an 8-bit I/O expander, 12-bit ADC, EEPROM, and temperature sensor. The kit enables users to control and configure the MCP2210 via Windows software, facilitating I/O testing, device configuration, and custom application development. Designed for engineers, it supports efficient evaluation of USB-to-SPI conversions and peripheral interfacing in embedded systems.
Microchip Technology ADM00421 USB-to-SPI Bridge Kit Specifications:
- MCP2210 device for USB-to-SPI conversion
- Includes MCP23S08 (8-bit I/O expander)
- Includes MCP3204 (4-channel, 12-bit ADC)
- Includes 25LC02 EEPROM, 2 kbit
- Includes TC77 temperature sensor
- Boards connected via mini-USB cable
- Windows-compatible control and configuration software
- Supports custom application development via DLL
- Test points for measurement and debugging
- Power supply options: 3.3V or 5V, up to 500 mA
- Includes jumper selectable voltage and SPI configurations
- Designed for evaluation and prototype development in embedded applications
Buy the Buy Microchip MCP2210 Part Number ADM00421 Online
Order the Microchip MCP2210 USB-to-SPI Bridge Kit online today. This development solution includes two connected boards with SPI peripherals, Windows software for control and configuration, and a DLL package for custom application development. Perfect for evaluation, testing, and prototyping in embedded systems, the kit features a power supply configurable for 3.3V or 5V, multiple test points, and supports flexible interface settings. Upgrade your development workflow with this reliable, easy-to-use evaluation platform.
Get Microchip MCP2210 today—optimized for reliable USB-to-SPI conversion and versatile peripheral interfacing in embedded projects.
