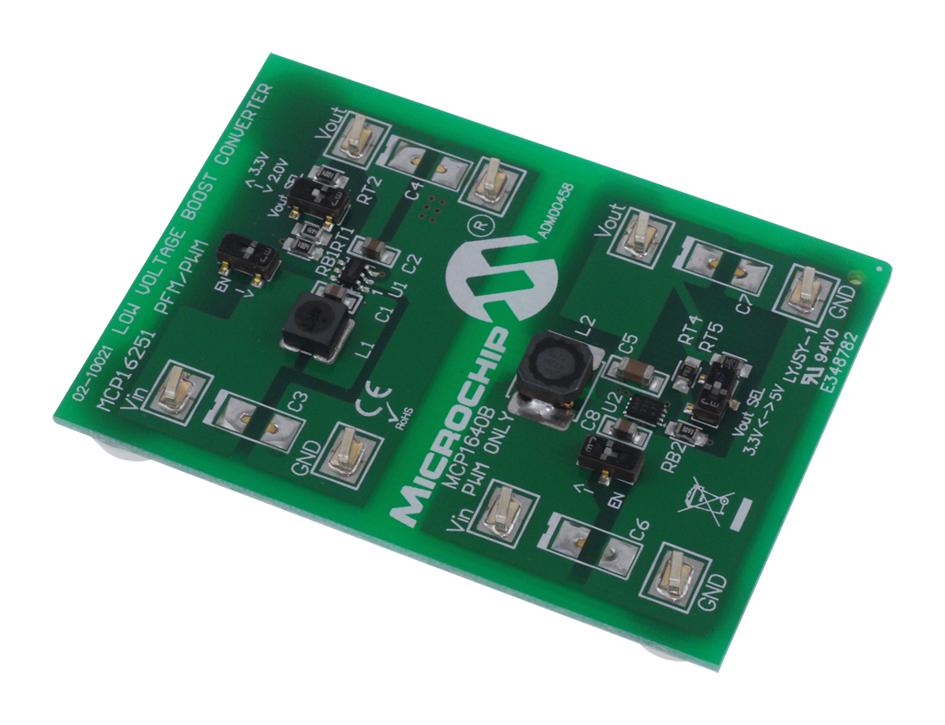

Microchip Technology ADM00458 boost converter evaluation board
The ADM00458 evaluation board is designed for testing and demonstrating the MCP16251 and MCP1640B synchronous boost converters. It features two boost converter configurations with multiple output voltages, selectable via a mini-dip switch for 2V, 3.3V, or 5V outputs. The board supports supply voltages from 0.35V to 5.5V, making it compatible with 1 to 3-cell alkaline, NiCd, NiMH, or Li-ion/polymer batteries. It provides typical output currents of 125mA at 3.3V and 200mA at 5V, with automatic PFM/PWM operation at a switching frequency of 500kHz. The converters can be enabled or disabled using a switch connected to the EN pin, providing true disconnect functionality when off. The evaluation board assists engineers in reducing design cycle time for applications in test, measurement, and industrial sectors.
Microchip Technology ADM00458 boost converter evaluation board Specifications:
- Input voltage range: 0.35V to 5.5V
- Output voltages: 2.0V, 3.3V, 5.0V selectable via mini-dip switch
- Maximum output current: 125mA at 3.3V, 200mA at 5V
- Switching frequency: 500 kHz
- Enable/Disable: switch on board for true-disconnect
- Supported battery types: alkaline, NiCd, NiMH, Li-ion, Li-polymer
- Peak input current limit: 650mA for MCP16251, 800mA for MCP1640B
- Start-up voltage: 0.82V (MCP16251), 0.65V (MCP1640B) at 3.3V output
- Operation mode: automatic PFM/PWM
Buy the Microchip MCP16251 – Reliable Boost Converters for Industrial Applications
Purchase the MCP16251 and MCP1640B boost converter evaluation board online today and accelerate your product development. This versatile testing platform supports multiple output voltages, compatible with various battery types, and features true-disconnect functionality for efficient energy management. With automatic PFM/PWM operation at 500kHz and current capabilities up to 200mA, it offers superior performance for test, measurement, and industrial systems. Order now to benefit from fast delivery and comprehensive technical support.
Buy Microchip MCP16251 now and experience unmatched reliability and performance in boost conversion for industrial applications.
