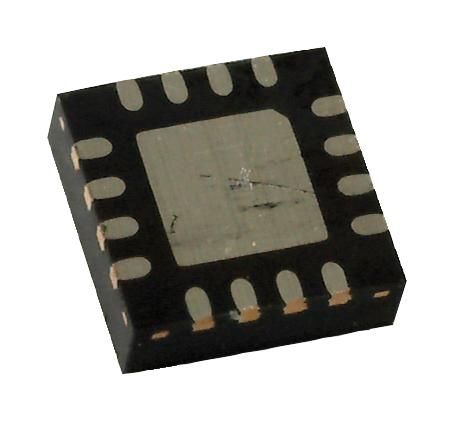

Microchip Technology PAC1952T1E4MX Energy Monitor
The PAC1952T1E4MX is a four-channel energy monitor with high-resolution voltage and current sensing, integral power calculation, and on-chip energy accumulation. It measures bus voltage, sense resistor voltage, and computes proportional power and energy over extended periods. Features include multiple sampling modes, auto-calibration, customizable thresholds for voltage, current, and power alerts, and digital communication via SMBus/I2C. Suitable for embedded computing, industrial, and high-power applications, it ensures accurate, long-term energy monitoring with flexible, low-power operation in a compact package.
Microchip Technology PAC1952T1E4MX Energy Monitor Specifications:
- Supply Voltage Range: 2.7V to 5.5V
- Bus Voltage Measurement Range: OV to 32V
- Current Sense Voltage Full-Scale Range: 100 mV
- Resolution: 16-bit ADC for voltage and current, 30-bit power accumulation
- Measurement Accuracy: ±0.25% for Vgense, ±0.405% for Vsense at 25°C
- Sampling Rates: 8, 64, 256, 1024 SPS, burst mode up to 5120 SPS
- Energy Accumulation: 56-bit accumulator, 32-bit counter
- Communication Interface: SMBus 3.1, I2C Fast & High-Speed modes
- Power Consumption in Active Mode: 495 pA at 1024 SPS
- Device Packages: 16-lead VQFN (3x3mm), 16-lead WLCSP (2.225x2.17mm)
- Operating Temperature: -40°C to +125°C
- Device Variants: PAC195X-1 (high-side), PAC195X-2 (low-side/floating VBUS)
- Additional features: Programmable alert thresholds, auto-calibration, and multiple input configurations
Buy the Buy Microchip PAC1952T1E4MX Part Number PAC1952T1E4MX Online
Order the Microchip PAC1952T1E4MX online now to ensure precise energy management in your systems. This four-channel energy monitor offers high-resolution voltage and current sensing, real-time power calculation, and extensive energy accumulation capabilities. Its flexible measurement modes and programmable alert thresholds allow for tailored deployment in industrial, computing, and high-power applications. Compact and power-efficient, the PAC1952T1E4MX is easy to integrate and built for long-term accuracy, making it the ideal choice for advanced energy monitoring solutions.
Get Microchip PAC1952T1E4MX today—designed for high-accuracy power and energy measurements in industrial and embedded systems.
Frequently Asked Questions
Where can I buy Microchip Technology PAC1952T1E4MX?
You can click on the BUY or RFQ button to purchase PAC1952T1E4MX from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PAC1952T1E4MX?
You can download the PAC1952T1E4MX datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PAC1952T1E4MX?
Microchip Technology
