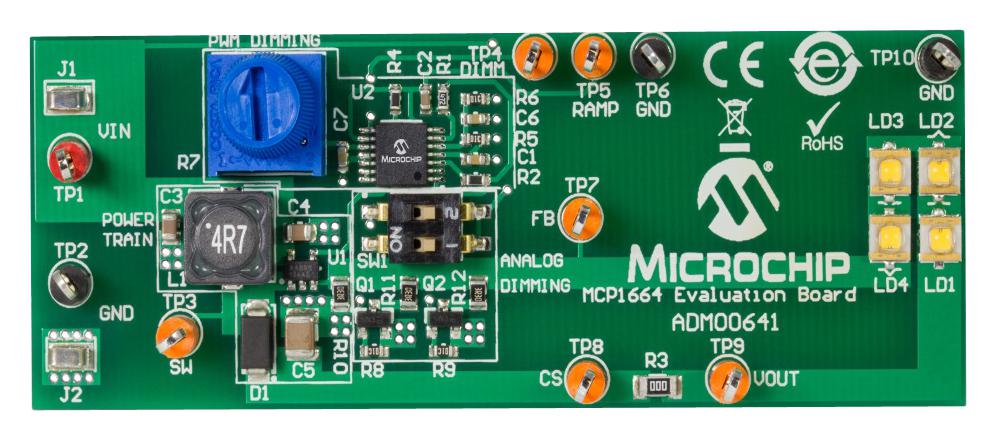

Microchip Technology ADM00641 LED Driver Module
The ADM00641 evaluation board demonstrates the MCP1664 LED driver in boost configuration, supporting input voltage 2.4V-5.5V, adjustable output currents of 90, 180, or 270 mA, PWM dimming at 500 kHz, and features over-temperature and open load protection. It is suitable for industrial testing, providing a compact solution for drive circuits in portable and wearable LED applications, with a high efficiency of up to 92% and a peak input current limit of 1.8A, ensuring safety and reliability in LED lighting systems.
Microchip Technology ADM00641 LED Driver Module Specifications:
- Input Voltage Range: 2.4V to 5.5V
- Output Current Options: 90 mA, 180 mA, 270 mA
- Switching Frequency: 500 kHz
- Peak Input Current Limit: 1.8A
- Efficiency: Up to 92%
- Protection Features: Over-temperature, open load protection
- Supports PWM Dimming
- Suitable for portable devices, industrial lighting, medical equipment
- Operates with single-cell Li-ion or multi-cell alkaline/NiMH batteries
- Input Capacitance: 4.7-10 μF ceramic capacitors
- Output Capacitance: 4.7-20 μF ceramic capacitors
- Inductor Range: 4.7 μH to 10 μH
- Shutdown current: < 50 nA
- Package options: SOT-23 and TDFN
- Designed for LED backlighting, flash lighting, and portable LED lighting systems
Buy the Microchip Series MCP1664 High-Voltage LED Driver: ADM00641
Purchase the MCP1664 LED driver evaluation board ADM00641 online today to efficiently test and implement reliable LED lighting solutions. This compact, industrial-grade testing tool supports input voltages from 2.4V to 5.5V, with adjustable current options up to 270 mA, high efficiency of 92%, PWM dimming, and essential safety protections including over-temperature and open load. Ideal for portable LED lighting, flashlights, medical devices, and backlighting applications, it simplifies your design process by providing a ready-to-use test platform with robust features for precision control and safety in demanding environments.
Order your Microchip Series MCP1664 ADM00641 today and give your projects the dependable quality they deserve with compact and efficient LED driving solutions.
Frequently Asked Questions
Where can I buy Microchip Technology ADM00641?
You can click on the BUY or RFQ button to purchase ADM00641 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part ADM00641?
You can download the ADM00641 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of ADM00641?
Microchip Technology
