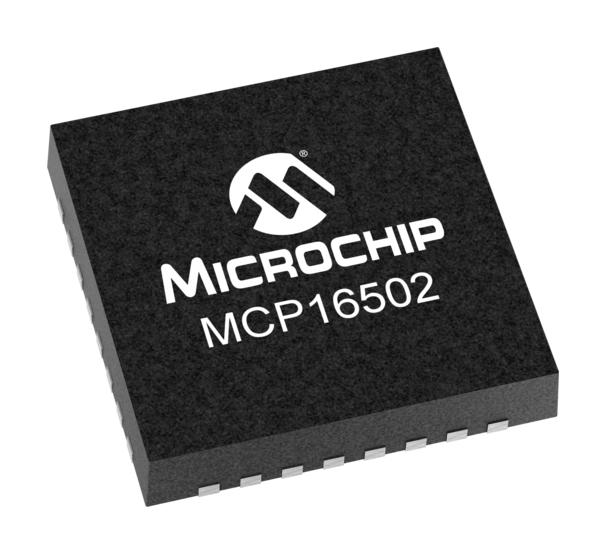

Microchip Technology MCP16502TAAES8B High-Performance Power Management IC
The MCP16502 is a high-performance Power Management IC (PMIC) designed for SAMAS5DX/SAM9X6 MPUs, offering four 1A buck channels with programmable voltages, two LDOs, and advanced features like DVS, sequence control, and fault protections. It supports multiple power modes including Hibernate, Low-Power, and High-Performance, with comprehensive interface options like I2C. Its robust thermal and current protections ensure reliability in demanding applications such as high-performance MPUs, FPGA, and DSP power supplies, in a compact 32-pin VQFN package suitable for space-constrained environments.
Microchip Technology MCP16502TAAES8B High-Performance Power Management IC Specifications:
- Input Voltage: 2.7V to 5.5V
- Four 1A Buck channels with 100% duty cycle capability
- Buck PWM Frequency: 2 MHz with displaceable +16.5%
- Two 300mA LDOs supporting low noise and low quiescent current
- Support for DVS, configurable sequence control, and multiple power modes including Hibernate, Low-Power, High-Performance
- Operating Temperature Range: -40°C to +125°C
- Package: 32-pin VQFN 5mm x 5mm with exposed pad
- Features: Thermal shutdown, overcurrent, short-circuit protection, ESD protection (2kV on pins)
- Communication: I2C interface at 1 MHz, with programmable fault and status registers
- Built-in reset and power-good indicators, active discharge resistors, and flexible configuration options for each channel
Buy the Microchip Series Power Management IC: MCP16502 High-Performance PMIC
Experience reliable and efficient power management with the MCP16502. Designed for high-performance MPUs, FPGA, and DSP applications, this advanced PMIC offers four 1A buck channels, dual LDOs, and extensive configuration options. It supports DVS, seamless sequencing, and fault protections, ensuring system stability and safety. Compact and durable in a 32-pin VQFN package, it is ideal for space-constrained designs requiring robust power solutions. Buy online today to upgrade your power management system with Microchip’s trusted technology.
Get Microchip MCP16502 today—built for precision power delivery with four 1A buck channels, advanced protection, and flexible power modes for demanding applications.
Frequently Asked Questions
Where can I buy Microchip Technology MCP16502TAAES8B?
You can click on the BUY or RFQ button to purchase MCP16502TAAES8B from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP16502TAAES8B?
You can download the MCP16502TAAES8B datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP16502TAAES8B?
Microchip Technology
