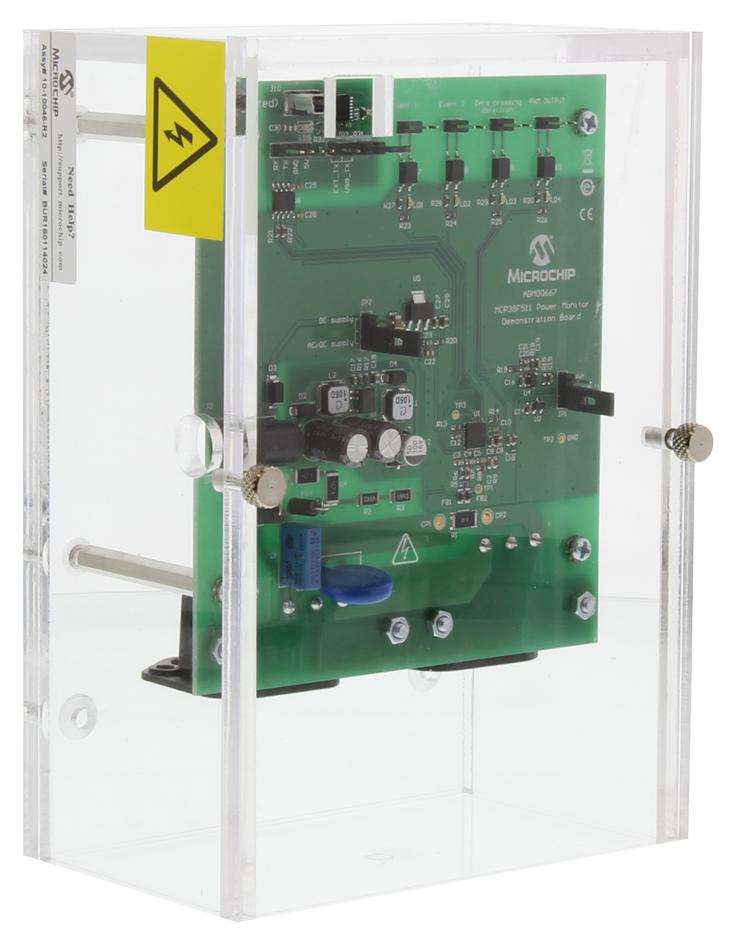

Microchip Technology ADM00667 Power Monitor
The MCP39F511 Power Monitor Demonstration Board is a fully functional single-phase power and energy monitoring system capable of measuring active power, reactive power, RMS voltage, RMS current, and energy import/export. This evaluation kit includes calibration software and hardware, such as the demonstrator board, AC line and load cables, and a USB interface. It is designed for research and development, offering precise energy measurement features for applications requiring accurate power monitoring. The system supports auto and single-point calibration, making it suitable for educational, testing, and development purposes.
Microchip Technology ADM00667 Power Monitor Specifications:
- Power Supply Voltage Range: 90V to 230V
- Maximum Current: 15A
- Calibration Current: 5A
- System Measures: Active Power, Reactive Power, RMS Voltage, RMS Current, Active and Reactive Energy
- Analog Front-End: 2 MΩ shunt, resistive voltage divider with 1000:1 ratio
- Analog circuitry connected to analog ground plane (Agnp)
- Display LEDs for digital I/O, external testing headers, and zero crossing detection
- Microcontroller Interface: USB, isolated UART, external MCU support via header
- Power Supply: Switching AC/DC supply with optional external supply
- Calibration Software: MCP39F511 Power Monitor Utility for single-point and automated calibration
- Operating Voltage: 90V-230V AC
Buy the Buy Microchip Power Monitor Part Number ADM00667 Online
Purchase the Microchip Power Monitor Evaluation Kit online for accurate, reliable single-phase energy measurement. This kit includes a demonstration board, calibration software, USB interface, and load cables, making it ideal for research, development, and educational purposes. Easily connect to your system, calibrate with automatic step-by-step procedures, and measure active/reactive power, RMS voltage/current, and energy import/export. Designed for quick setup and precise power analytics, ensuring optimal performance in power management applications.
Get Microchip MCP39F511 today—built for precise energy monitoring and long-lasting reliability with easy calibration and USB connectivity.
Frequently Asked Questions
Where can I buy Microchip Technology ADM00667?
You can click on the BUY or RFQ button to purchase ADM00667 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part ADM00667?
You can download the ADM00667 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of ADM00667?
Microchip Technology
