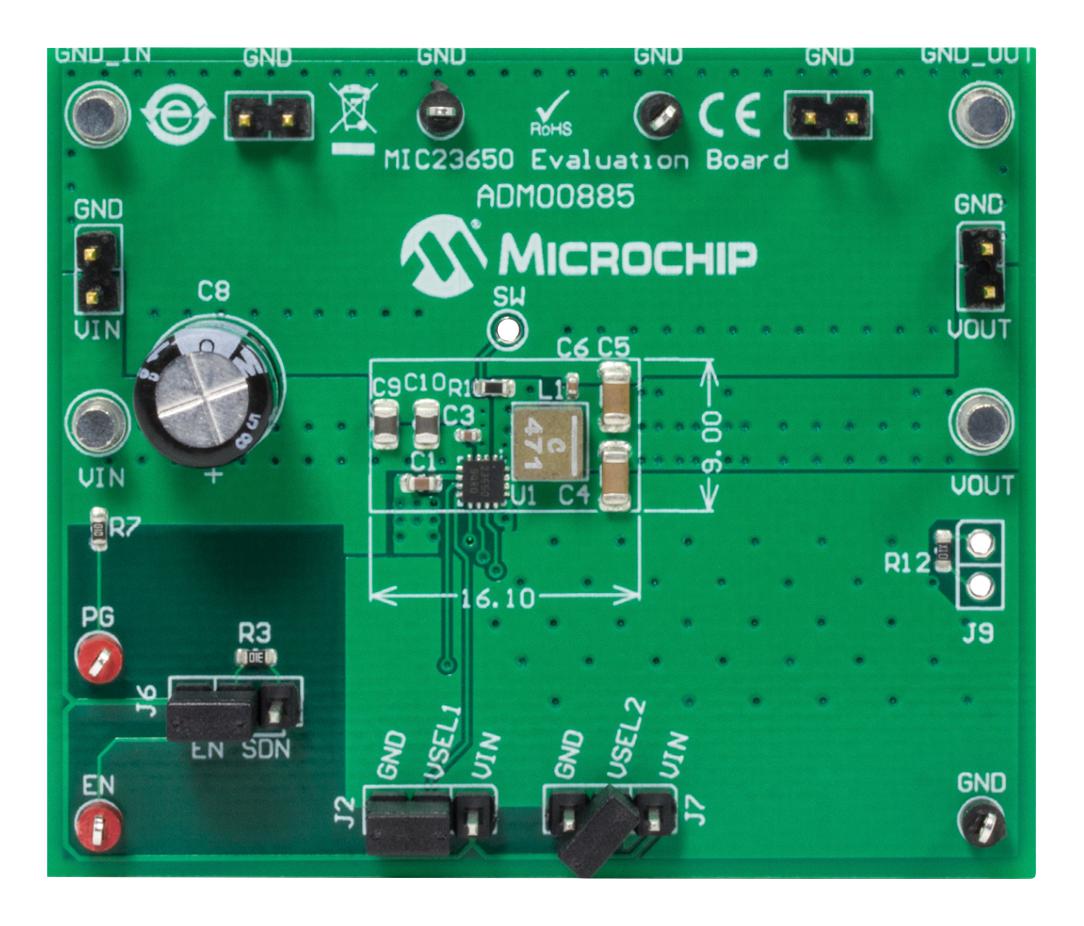

Microchip Technology ADM00885 Power Regulator Evaluation Board
This evaluation board is designed to demonstrate Microchip's MIC23650 synchronous buck regulator, supporting input voltages from 2.4V to 5.5V. It offers adjustable output voltages from 0.6V to 3.3V via two voltage select pins, and can deliver up to 6A peak current. Featuring high efficiency of up to 95%, the board includes test points for PG, EN, SW, and loop gain measurements. It employs HyperLight Load technology and supports a 10A inductor current limit, ideal for testing and development of power management solutions.
Microchip Technology ADM00885 Power Regulator Evaluation Board Specifications:
- Input Voltage Range: 2.4V to 5.5V
- Output Voltage: selectable at 0.6V, 0.8V, 0.9V, 1.0V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V
- Maximum Peak Output Current: 6A
- Efficiency: up to 95%
- Test Points: PG, EN, SW, loop gain
- Inductor Current Limit: 10A
- Supports HyperLight Load Technology
- Evaluation Board for Microchip MIC23650
- Package: Evaluation Board with component layout for testing
- Dimensions: Compact design suitable for prototyping
Buy the Buy Microchip MIC23650 Part Number ADM00885 Online
Enhance your power management development with the Microchip MIC23650 Evaluation Board. Supporting input voltages of 2.4V to 5.5V and providing adjustable outputs from 0.6V to 3.3V, this high-performance board delivers up to 6A peak current with efficiency reaching 95%. Ideal for testing and advanced prototyping, it includes test points for PG, EN, SW, and loop gain measurements. The design supports HyperLight Load technology, making it essential for engineers seeking reliable power regulation solutions.
Buy Microchip MIC23650 part number ADM00885 now and experience unmatched reliability and high efficiency power regulation.
