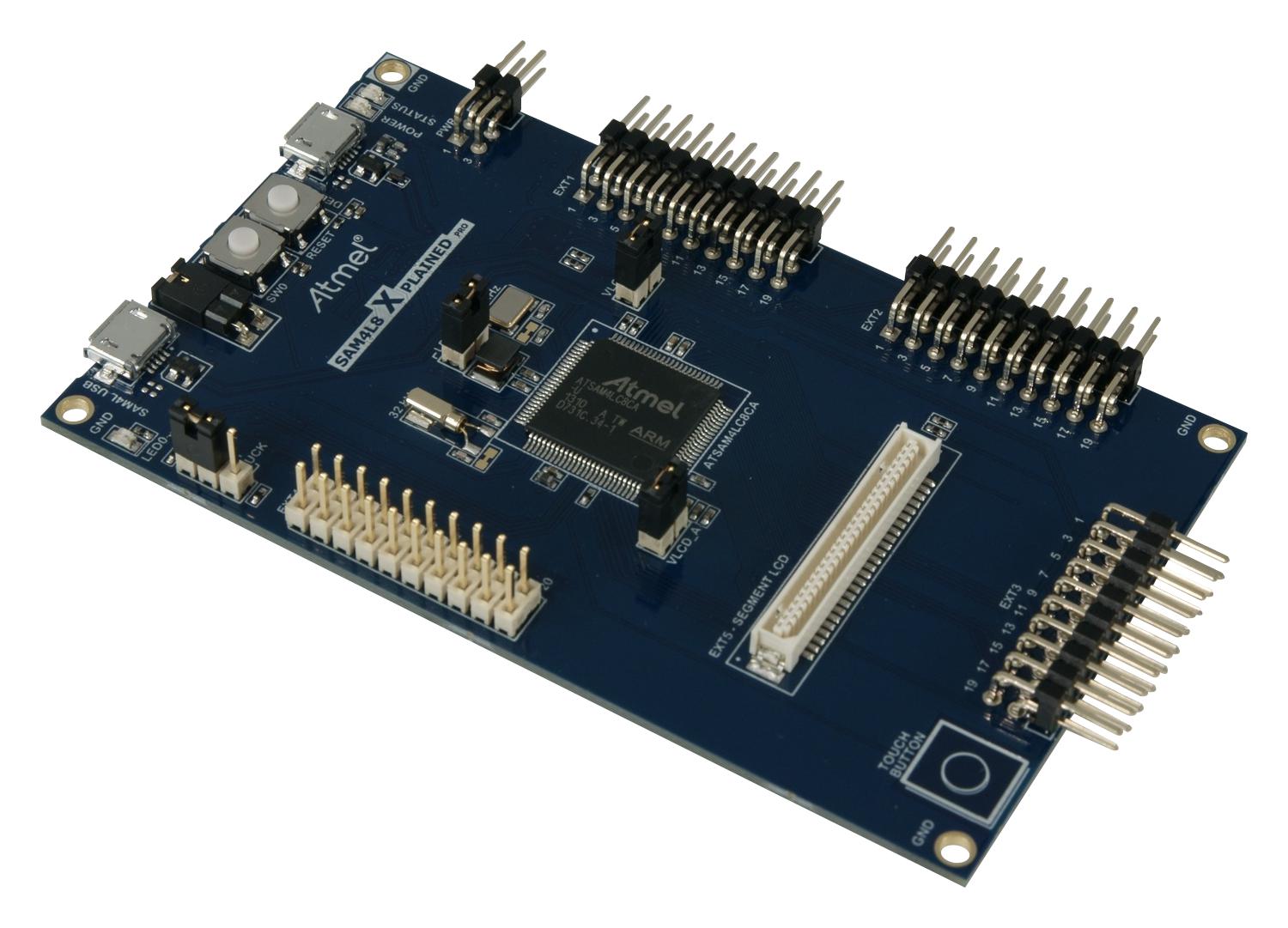

Microchip Technology ATSAM4L8XPRO Evaluation Kit
The SAM4L8 Xplained Pro evaluation kit is a versatile hardware platform designed to evaluate the ATSAM4LC8CA microcontroller. It features on-board embedded debugging, multiple extension headers, a segment LCD display header, and a user-friendly USB interface for programming and debugging via Serial Wire Debug (SWD). The kit includes mechanical buttons, a yellow LED, and supports external power sources through USB or external inputs. Supporting a wide variety of extension boards, it integrates comprehensive peripherals and I/O options to facilitate rapid development and integration in custom designs.
Microchip Technology ATSAM4L8XPRO Evaluation Kit Specifications:
- Microcontroller: ATSAM4LC8CA
- Embedded Debugger: Yes, SWD interface
- USB Interface: USB host and device
- Power supply options: USB, external 5V source, embedded debugger USB
- Crystals: 12MHz and 32.768kHz crystals included
- Peripherals: User button, reset, yellow LED
- Extension headers: Four standard, one segment LCD
- Dimensions: Standard 2.54 mm pitch headers, compatible with extension modules
- GPIO support: Multiple digital I/O pins with extension access
- Segment LCD display header: Supports segment LCD displays via dedicated connector
- Current requirements: External power recommended for high load, 5V +/- 2%
- Power management: Automatically switches between sources, VCC regulated to 3.3V
- Target USB and embedded debugger USB: 500mA maximum current each
- Power measurement: Via jumper replacement with an ammeter on power plane
Buy the Buy Atmel Evaluation Kit ATSAM4L8XPRO Part Number ATSAM4L8XPRO Online
Enhance your development with the Atmel ATSAM4L8XPRO evaluation kit, featuring on-board embedded debugger, multiple extension headers including segment LCD, USB interface for programming and debugging, and support for various power sources. Its comprehensive peripherals and GPIO options enable rapid prototyping and integration in industrial automation, control systems, or embedded applications. Designed for ease of use with Atmel Studio, this kit accelerates project timelines and simplifies complex microcontroller testing, making it a reliable choice for developers aiming for efficient and scalable solutions.
Order your Atmel Evaluation Kit ATSAM4L8XPRO today and discover comprehensive debugging, versatile I/O, and extensive extension support for your ARM-based projects.
Frequently Asked Questions
Where can I buy Microchip Technology ATSAM4L8XPRO?
You can click on the BUY or RFQ button to purchase ATSAM4L8XPRO from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part ATSAM4L8XPRO?
You can download the ATSAM4L8XPRO datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of ATSAM4L8XPRO?
Microchip Technology
