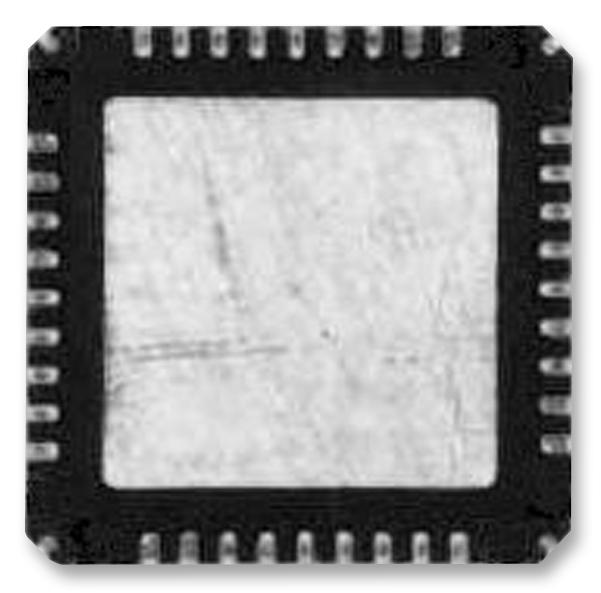

Microchip Technology DSPIC33CH128MP503IM5 Dual-Core DSP Controller
This dual-core 16-bit digital signal controller features high-resolution PWM with up to 12 channels and 250 picoseconds resolution, two general-purpose 16-bit timers, a peripheral trigger generator, and 12 SCCP modules. It supports low power modes including sleep, idle, and doze, and includes integrated power-on and brown-out resets. The device has an internal oscillator with programmable PLLs and multiple clock sources. Communication interfaces include three UARTs, three 4-wire SPI/I2S modules, CAN flexible data rate (CAN FD), and three I2C modules. It offers eight DMA channels, four ADCs, four DACs or analog comparators, three programmable gain amplifiers, and shared DAC/analog output. Programming can be performed in-circuit or in-application.
Microchip Technology DSPIC33CH128MP503IM5 Dual-Core DSP Controller Specifications:
- Core: Dual 16-bit with high-resolution PWM (250ps), 12 channels
- Timers: Two 16-bit general-purpose timers
- Peripheral Trigger Generator: Supports automating complex sequences
- SCCP Modules: 12 channels for PWM, input capture, compare
- Communication: 3 UARTs, 3 SPI/I2S, 3 I2C, CAN FD
- DMA: 8 channels for high throughput data transfer
- ADC: 4 high-speed 12-bit ADCs
- DAC: 4 DACs or analog comparators, supports slope compensation
- Analog: 3 PGAs, internal voltage references
- Oscillator: Programmable PLLs with multiple clock sources
- Power modes: Sleep, Idle, Doze with configurable settings
- Device protection: Error correction, security features
- Programming: In-circuit, self-programming, with device support through MPLAB
- Package: Variable options, including 28, 36, 48, 64, 80-pin packages
- Temperature range: -40°C to +125°C (Extended)
