Microchip Technology DM164139 LoRa Transceiver Module

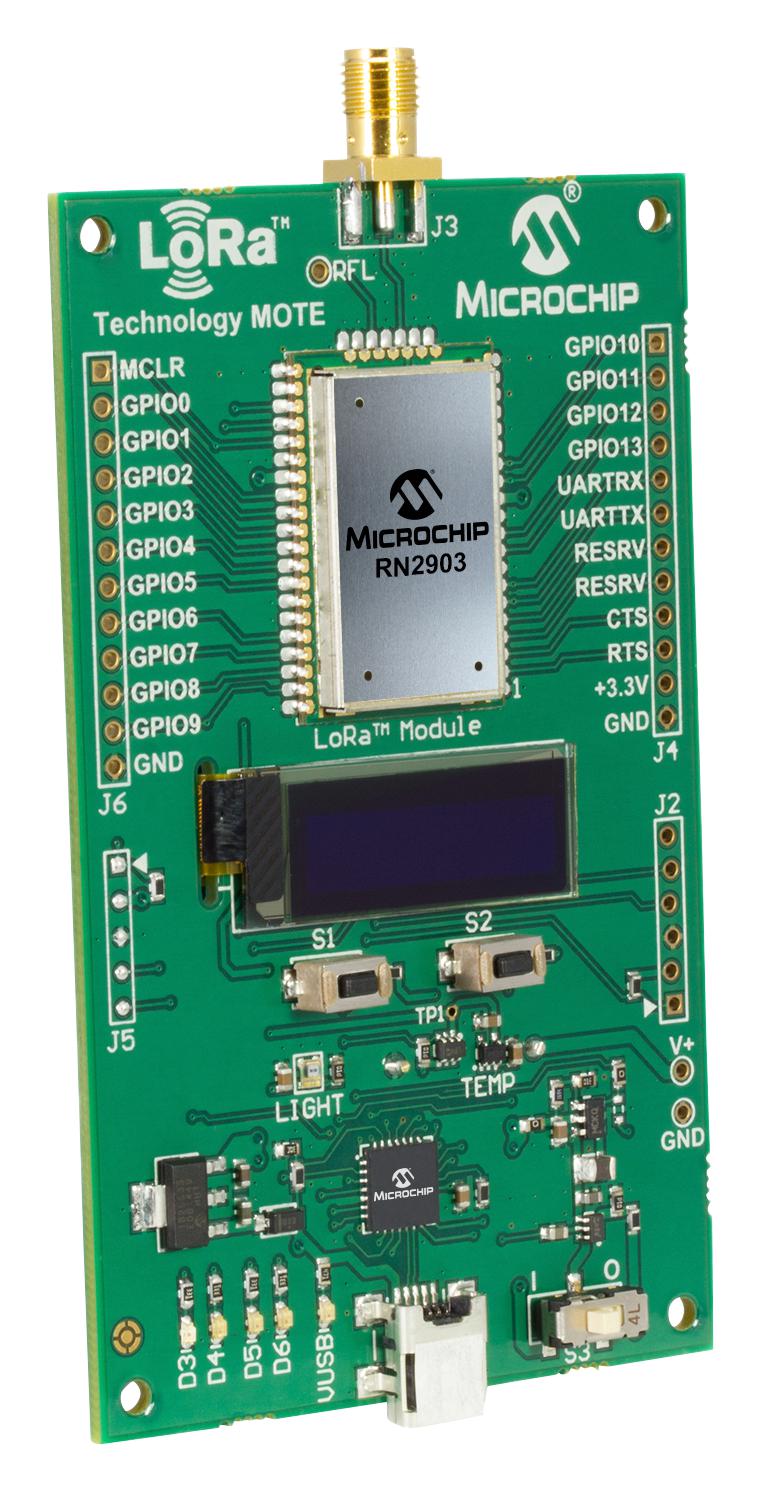

The LoRa® Mote is a demonstration board that showcases Microchip's low-power long-range LoRa® technology transceiver module operating at 868/915 MHz or 433 MHz. It features a USB-to-UART bridge, GPIO module pins, a 1.2-inch backlit LCD display, ambient light and temperature sensors, various LEDs, push buttons for navigation and selection, and an optional battery power supply. The board supports multiple operation modes, including USB CDC-Serial, mobile sensor emulation, and firmware update via bootloader, making it ideal for IoT development and LoRaWAN applications.
Microchip Technology DM164139 LoRa Transceiver Module Specifications:
- Operating Frequency: 868/915 MHz high-frequency SMA connector, 433 MHz low-frequency antenna point
- MCU: PIC18LF45K50 8-bit USB XLP Flash 32Kb
- LoRa Module: RN2483 (868/915 MHz) or RN2903 (915 MHz)
- Display: 1.2 Inch 128x32 Dot Matrix LCD with Backlight
- Sensors: Ambient Light (ALS-PT19-315C), Thermistor (MCP9700)
- Power: USB 5V regulated to 3.3V via MCP1825S LDO or AAA batteries
- Communication: USB Micro-B, UART, GPIO, ICSP programming
- Indicators: Red and Green LEDs controlled by MCU; GPIO10 and GPIO11 LEDs
- Input: S1 and S2 push buttons for menu navigation and selection
- Antenna: SMA connector for high-frequency RF, wire antenna for low-frequency RF
- Support for firmware updates via bootloader GUI, and operation modes include USB CDC serial, sensor emulation, and command control
Buy the Microchip RN2483 U+2013 Reliable LoRa® Module for Industrial Applications
Enhance your IoT projects with the LoRa transceiver module-based demonstration board, featuring microchip's long-range low-power technology at 868/915 MHz, sensors, LCD, and USB connectivity, ideal for development, testing, and deployment of LoRaWAN networks. The board is supported by firmware for firmware updates and easy integration into your applications, making it a versatile choice for industrial and IoT solutions seeking reliable long-distance wireless communication.
Buy Microchip RN2483 now and experience unmatched reliability and performance in IoT and LoRaWAN sensor projects.
Frequently Asked Questions
Where can I buy Microchip Technology DM164139?
You can click on the BUY or RFQ button to purchase DM164139 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part DM164139?
You can download the DM164139 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of DM164139?
Microchip Technology
