Microchip Technology HV2708TCR8X High-Voltage Analog Switch
The HV2708 is a 16-channel high-voltage analog switch designed for applications requiring low harmonic distortion and low charge injection. It handles analog signal voltages up to +100V with only a +5V bias supply, eliminating the need for high-voltage power supplies. Featuring integrated bleed resistors on one side, it prevents voltage buildup across capacitive loads such as piezoelectric transducers. Suitable for medical ultrasound imaging, piezoelectric drivers, and non-destructive testing, it offers low on-resistance, high bandwidth, and excellent noise immunity in a 48-pin LQFP package.
Microchip Technology HV2708TCR8X High-Voltage Analog Switch Specifications:
- Number of channels: 16
- Analog signal voltage: Up to +100V
- Bias supply: +5V
- Supply voltage range: 4.5V to 6.3V
- On-resistance: Typical 14Ω at 5mA, 23Ω at 200mA
- Bandwidth: 100 MHz
- Leakage current: Less than 10nA at 100V
- Off isolation: -76 dB at 5.0 MHz
- Output bleed resistors: Integrated at one or both sides depending on device
- Package: 48-pin LQFP
- Operating temperature: 0°C to +70°C
- Maximum junction temperature: +125°C
- GND: Digital ground, separate from analog ground
- Serial interface: 66 MHz clock, 16-bit shift register
- Timing: Setup time 25 ns, hold time 1.5 ns
- No high-voltage supplies needed

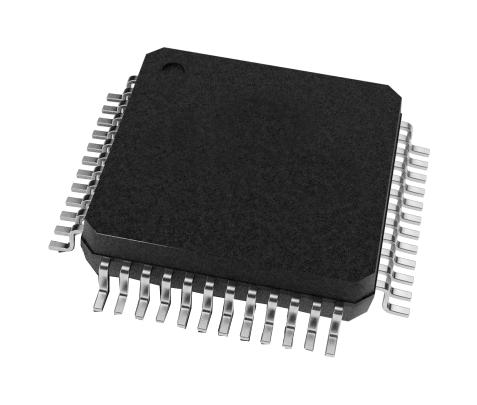

Buy the Buy Microchip HV2708 Part Number HV2708TCR8X Online
Order the Microchip HV2708 high-voltage 16-channel analog switch online today. engineered for low harmonic distortion and handling up to +100V signals, it requires only a +5V bias supply, making it ideal for ultrasound, piezoelectric transducer driving, and non-destructive testing. Its integrated bleed resistors prevent voltage buildup, ensuring stable operation with low on-resistance, high bandwidth, and excellent noise immunity. Conveniently available in a 48-pin LQFP package, it guarantees durability and precision for your high-voltage switching needs.
Get Microchip HV2708 today—built for precision high-voltage switching with low harmonic distortion and reliable performance in medical and testing equipment.
Frequently Asked Questions
Where can I buy Microchip Technology HV2708TCR8X?
You can click on the BUY or RFQ button to purchase HV2708TCR8X from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part HV2708TCR8X?
You can download the HV2708TCR8X datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of HV2708TCR8X?
Microchip Technology
