Microchip Technology DM164143 Low-Power Microcontroller

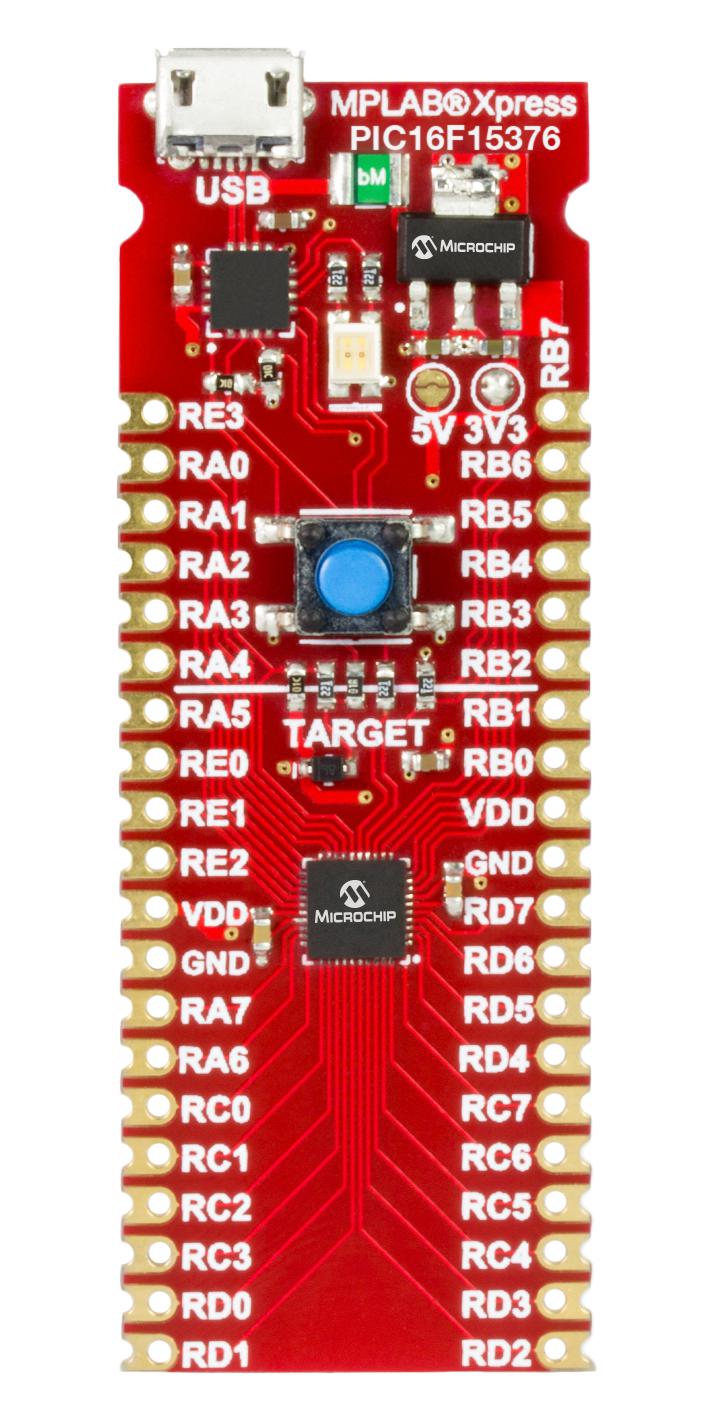

The MPLAB Xpress board features the PIC16F15376 microcontroller, part of an 8-bit family optimized for low-power applications. It incorporates eXtreme Low-Power technology and core independent peripherals, making it suitable for diverse low-power solutions. Key features include pulse-width modulation, multiple communication interfaces, an on-chip temperature sensor, and memory management options such as Memory Access Partition and Device Information Area for data protection and bootloader functions. The board supports rapid development via MPLAB Xpress IDE and MPLAB Code Configurator, with integrated USB programming and a compact design ideal for flexible prototyping.
Microchip Technology DM164143 Low-Power Microcontroller Specifications:
- Core: 8-bit PIC16F15376
- Flash Memory: Up to 28 KB
- SRAM: Up to 2 KB
- Operating Voltage: 2.0V to 5.5V
- Internal Oscillator: 32 MHz
- Peripherals: PWM, Comparator, ZCD, 10-bit ADC with 43 channels, 5-bit DAC
- Communication: EUSART, SPI, I2C
- Power Modes: IDLE and DOZE
- Memory Features: MAP for bootloader, DIA for unique ID
- Power Management: Peripheral Module Disable (PMD)
- Package Types: UQFN, TQFP
- Development Support: MPLAB Xpress, MPLAB Code Configurator
- Board Includes: Integrated programmer via USB, compact footprint
Buy the Microchip DM164143 U–2013 Reliable Low-Power Microcontroller for Industrial Applications
Discover the Microchip PIC16F15376 low-power microcontroller evaluation board designed for industrial and embedded applications requiring efficient power management. Featuring core independent peripherals like PWM, ADC, and communication interfaces, it supports rapid development via MPLAB Xpress and Code Configurator. Its compact design includes an integrated USB programmer for quick prototyping. Ideal for developers seeking a reliable, flexible solution for low-power systems, this evaluation board streamlines project development and offers robust features for loading firmware and managing memory with protective capabilities, making it a smart choice for diverse applications.
Order your Microchip DM164143 series PIC16F15376 evaluation board today and accelerate your low-power embedded project development with confidence.
