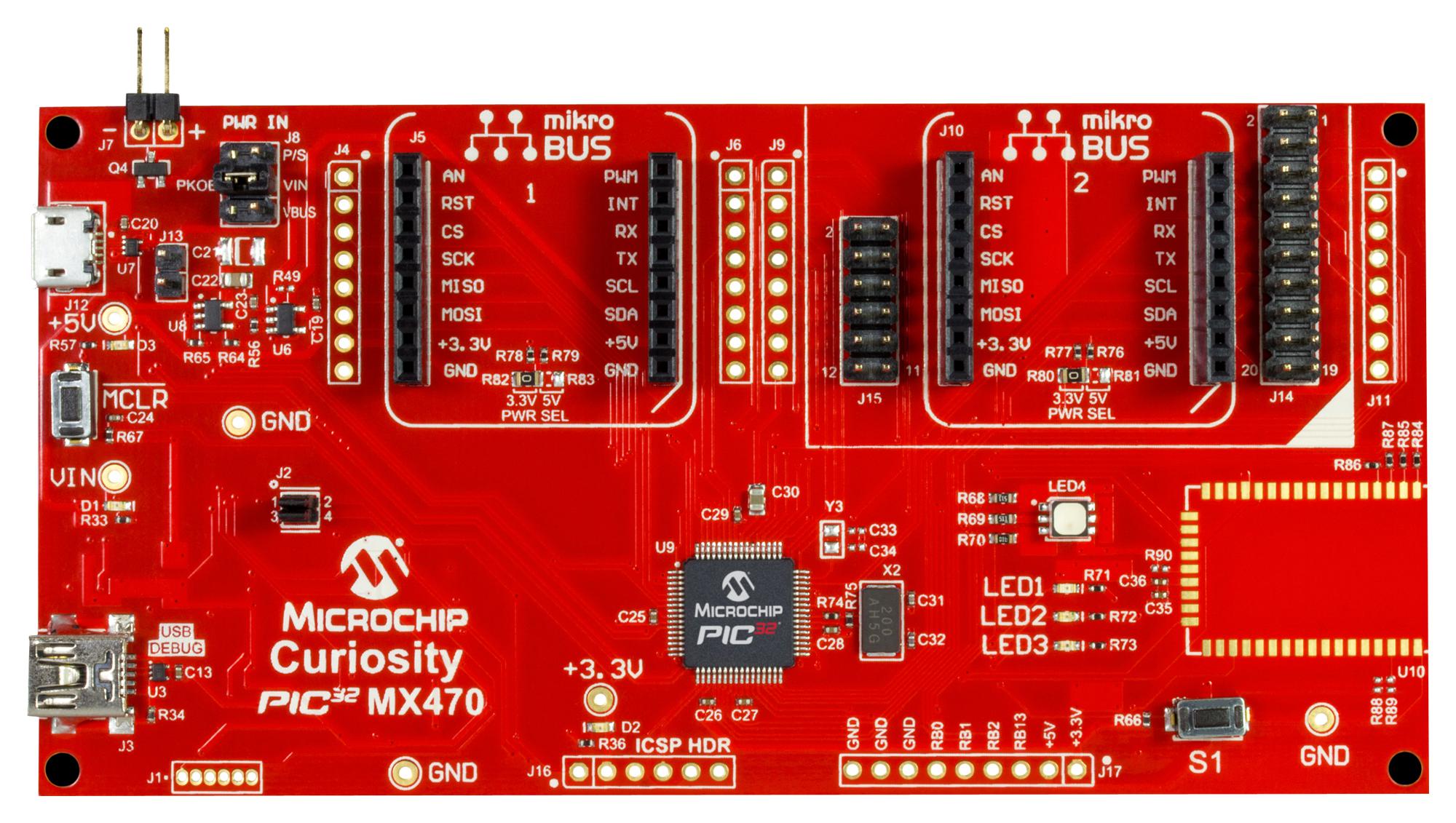

Microchip Technology DM320103 Embedded Development Board
The product is a versatile development board featuring the PIC32MX470F512H microcontroller, integrated programmer/debugger, and expansion options including mikroBUS sockets, Bluetooth connectivity with BM64 module, and audio I/O capabilities with daughter boards. Designed for IoT, robotics, and proof-of-concept projects, it supports USB device and host modes, provides GPIO expansion, and includes LEDs, switches, and crystal oscillators. The board simplifies development with on-board debugging and versatile power options, making it suitable for advanced embedded system prototyping and testing.
Microchip Technology DM320103 Embedded Development Board Specifications:
- Microcontroller: PIC32MX470F512H
- Power Supply: via USB mini-B, micro-AB, or external +5V
- Voltage regulator: MPC1727 generating +3.3V
- USB Connectivity: Full-speed USB 2.0 in device and host modes
- Expansion: Two mikroBUS sockets, stereo audio headers, Bluetooth footprint
- Clock: 20 MHz crystal oscillator, optional secondary 32 kHz oscillator
- Buttons: Reset (MCLR), User (S1)
- LEDs: Four user-controlled LEDs (LED1, LED2, LED3, RGB LED4)
- Debugging: On-board PICkit debugger, external debug header
- Oscillators: 20 MHz main crystal, unpopulated 32 kHz secondary crystal
- Additional peripherals: GPIO expansion header, Bluetooth module footprint, audio headers
- Size & Packaging: Not specified
Buy the Microchip DM320103 – Reliable Embedded Development Board for Industrial Applications
Enhance your project development with the Microchip DM320103 Embedded Development Board. Featuring the powerful PIC32 microcontroller, versatile expansion options including mikroBUS sockets, Bluetooth connectivity, and audio I/O, this board offers a complete platform for IoT, robotics, and prototype designs. Its integrated programmer and debugger simplify debugging and firmware development. Supported by extensive documentation and support channels, this development board ensures high reliability and flexibility for professional engineers and developers seeking efficient embedded system solutions.
Order your Microchip DM320103 development board today and empower your embedded system projects with reliable debugging, expansion, and connectivity features.
Frequently Asked Questions
Where can I buy Microchip Technology DM320103?
You can click on the BUY or RFQ button to purchase DM320103 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part DM320103?
You can download the DM320103 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of DM320103?
Microchip Technology
