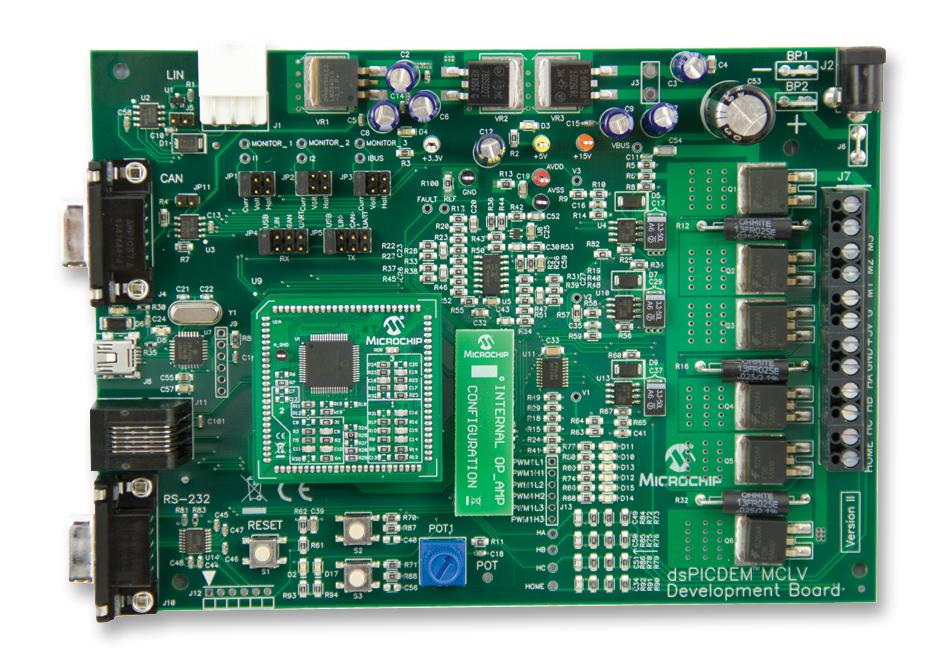

Microchip Technology DM3300212 Motor Control Development Board
The dsPICDEM MCLV-2 Development Board is a versatile, cost-effective platform designed for motor control applications, supporting both sensored and sensorless operation of brushless DC and PMSM motors. It features a three-phase inverter, multiple communication interfaces including CAN, LIN, USB, and RS-232, and support for dsPIC33F, PIC24F, dsPIC33E, and PIC24E device families. The board includes input/output control switches, LED indicators, power supply connectors, programming ports, and various circuitry for feedback signal measurement, fault detection, and motor control. It supports motors with terminal voltage up to 48V and current up to 15A, making it suitable for a wide range of industrial and automation projects.
Microchip Technology DM3300212 Motor Control Development Board Specifications:
- Supports motor terminal voltage up to 48V
- Supports motor current up to 15A
- Power supply input: 16V to 48V (via jumper configuration)
- Supports dsPIC33F, PIC24F, dsPIC33E, PIC24E microcontroller families
- Three-phase inverter with a 48V/15A rating
- Multiple communication interfaces: CAN, LIN, USB, RS-232
- Input/output control: push-buttons, LEDs, potentiometer, debug indicators
- Power regulation: +15V, +5V, +3.3V regulated outputs for various subsystems
- Jumper settings for power configuration and signal routing
- Input connectors include power, motor, communication ports, and programming interfaces
- Supports both internal and external op-amp matrix configuration for feedback signal amplification
- Maximum electrical specifications: motor voltage 48V, current 15A
- Certified for ISO/TS 16949 quality management system
Buy the Microchip Series MCLV-2 Brushless DC Motor Control: DM3300212
Enhance your motor control development with the Microchip Series MCLV-2 DM3300212 Board. Supporting brushless DC and PMSM motors up to 48V and 15A, it features multiple communication interfaces, feedback circuitry, and robust power regulation. Perfect for industrial automation, robotics, and research applications, this versatile board allows seamless integration with dsPIC33F, PIC24F, dsPIC33E, and PIC24E microcontrollers. Designed for reliable operation, it offers adjustable power options, debugging LEDs, push-buttons, potentiometers, and comprehensive programming ports. Order now to elevate your development capabilities with microchip’s high-performance motor control platform.
Order your Microchip Series MCLV-2 DM3300212 development board today and empower your motor control projects with reliable, industry-grade performance.
