Microchip Technology MCP42100IP Digital Potentiometer
The MCP42100 is a dual digital potentiometer with 256 taps, designed for applications requiring precise resistance adjustment in systems like gain control, offset trimming, and voltage division. It features a high-resolution 8-bit data register, low power CMOS technology, and operates from a single 2.7V to 5.5V supply. Its key advantages include ultra-low static current consumption, daisy-chain capability, and Power-down mode for maximum power savings. Suitable for industrial and extended temperature ranges (-40°C to +125°C), it ensures stability over temperature and high accuracy for demanding electronic adjustments.
Microchip Technology MCP42100IP Digital Potentiometer Specifications:
- Resistance Values: 10kΩ, 50kΩ, 100kΩ
- Number of Taps: 256
- Supply Voltage Range: 2.7V to 5.5V
- Operating Temperature Range: -40°C to +125°C
- Wiper Resistance: 52Ω (10kΩ), 125Ω (50kΩ), 100Ω (100kΩ)
- Power Consumption: Static current less than 1μA
- Interface: SPI (Serial Peripheral Interface) Mode 0,0 and 1,1
- Data Resolution: 8-bit (256 steps)
- Package Types: 8-pin PDIP, 8-pin SOIC, 14-pin PDIP, 14-pin SOIC, 14-pin TSSOP
- Shutdown Mode: Open circuits all resistors for power savings, hardware shutdown pin available in MCP42XXX
- Temperature Range: -40°C to +125°C extended, -40°C to +85°C industrial
- Daisy-chain capable with multiple devices
- Power-up Reset: Wiper reset to mid-scale (80h)

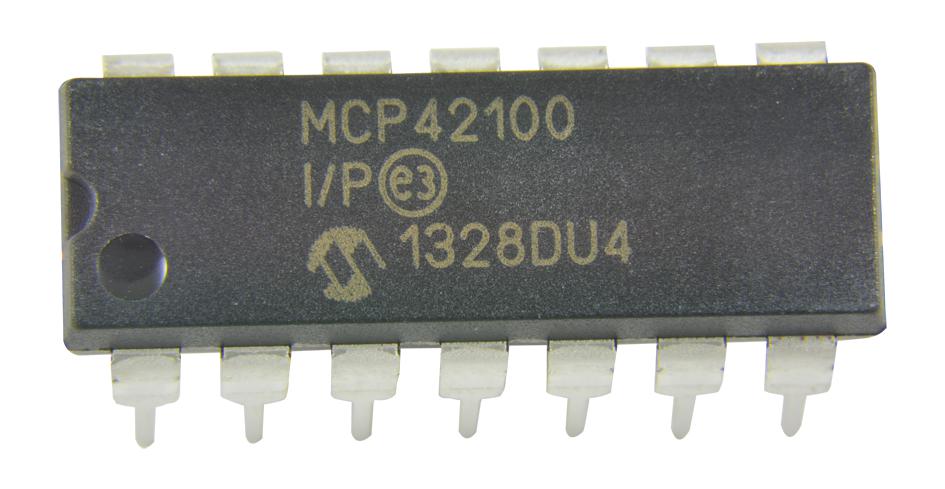

Buy the Microchip Series MCP42XX Digital Potentiometer: MCP42100
Purchase the Microchip MCP42100 dual digital potentiometer online today for reliable resistance adjustment in electronic circuits. Featuring high resolution, low power consumption, and extensive temperature range, this device is ideal for precision voltage division, gain control, offset trimming, and more. Its SPI interface allows easy integration into your system, with multiple daisy-chain devices supported for complex applications. Designed for stability, accuracy, and durability, the MCP42100 ensures superior performance for industrial and professional electronic projects. Order online now and enhance your designs with this versatile component!
Get Microchip MCP42100 dual digital potentiometer today—built for precision and long-lasting durability in your electronic projects.
Frequently Asked Questions
Where can I buy Microchip Technology MCP42100IP?
You can click on the BUY or RFQ button to purchase MCP42100IP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP42100IP?
You can download the MCP42100IP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP42100IP?
Microchip Technology
