Microchip Technology DSPIC30F301430IP 16-bit Signal Controller
The dspic30F3014/4013 are high-performance 16-bit digital signal controllers featuring modified Harvard architecture, up to 30 MIPS, integrated Flash memory, 12-bit ADC, multiple communication modules including UART, SPI, I2C, CAN, and advanced timers. Designed for real-time applications, these devices support DSP instructions, multiple power modes, code security, in-circuit programming, and extensive I/O ports for industrial and consumer electronics. Robust operation under harsh conditions with low power consumption and comprehensive system integration make them ideal for embedded signal processing, motor control, and multimedia applications.
Microchip Technology DSPIC30F301430IP 16-bit Signal Controller Specifications:
- Modified Harvard architecture with 24-bit instruction word
- Up to 30 MIPS at 40 MHz external clock with PLL (4x, 8x, 16x) support
- On-chip Flash memory: 24K bytes (3014), 48K bytes (4013)
- Data RAM: 2K bytes, Data EEPROM: 1K byte
- Up to 13 ADC channels with 200 ksps sampling rate
- Dual 40-bit accumulators with saturation logic
- Timer modules: Timer1 (16-bit), Timer2/3 (32-bit), Timer4/5 (32-bit)
- Multiple serial modules: UART (2), SPI (1), I2C (1), CAN (1)
- Support for sleep, idle, and alternate clock modes
- Interrupt sources: up to 41 with configurable priority levels
- In-circuit serial programming, code protection, watchdog timer, brown-out reset, low-voltage detect
- Various package options: 40-pin PDIP, 44-pin TQFP, 44-pin QFN
- Operating voltage: 2.5V to 5.5V, industrial and extended temperature ranges
- Low power consumption with various system and peripheral power modes
- Support for external and internal oscillators, PLL, oscillator start-up and fail-safe clock monitor

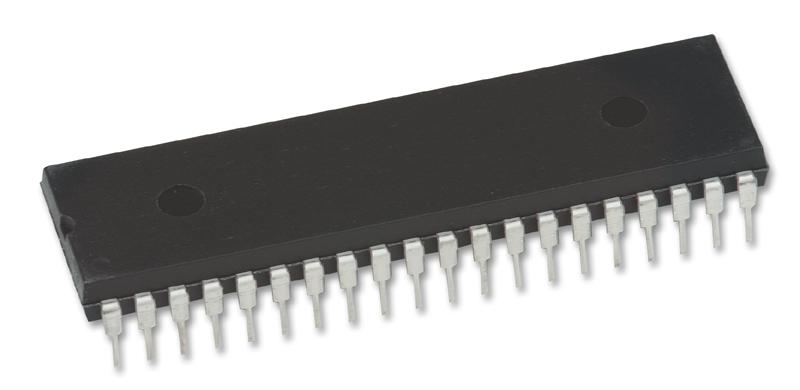

Buy the Buy Microchip dspic30F3014/4013 Part Number DSPIC30F301430IP Online
Get your Microchip dspic30F3014/4013 microcontroller today online. These high-performance 16-bit DSP controllers offer integrated Flash, ADC, communication modules, and timers. Perfect for real-time signal processing, motor control, and multimedia applications. With support for low power modes, code protection, in-circuit programming, and robust operation under harsh conditions, these devices deliver flexibility and reliability. Order now to enhance your embedded system projects with state-of-the-art microcontrollers from Microchip, backed by technical support and extensive system integration features.
Buy Microchip dspic30F3014/4013 now and experience unmatched reliability and performance in embedded signal processing and control systems.
Frequently Asked Questions
Where can I buy Microchip Technology DSPIC30F301430IP?
You can click on the BUY or RFQ button to purchase DSPIC30F301430IP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part DSPIC30F301430IP?
You can download the DSPIC30F301430IP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of DSPIC30F301430IP?
Microchip Technology
