Microchip Technology MCP3314105EMS High-Speed Data Acquisition ADC
The MCP3314105EMS is a high-performance, low-power 12-bit successive approximation register (SAR) analog-to-digital converter (ADC) capable of 500 ksps. Designed for wide temperature operation from -40°C to +125°C, it supports an external analog reference voltage up to 5.1V and features a flexible SPI-compatible interface at up to 30 MHz. The device provides precise and reliable measurement for industrial, automotive, and medical applications, with integrated auto-calibration, low input leakage, and an internal data accumulator to enhance ENOB by averaging multiple samples, making it ideal for high-accuracy data acquisition tasks.
Microchip Technology MCP3314105EMS High-Speed Data Acquisition ADC Specifications:
- Resolution: 12-bit
- Sample Rate: 500 ksps
- Input Type: Single-Ended
- Input Voltage Range: OV to Vref (up to 5.1V)
- Reference Voltage: External, up to 5.1V
- Power Supply: AVpp 1.8V, DVio 1.7V to 5.5V
- Input Capacitance: 10 pF
- Timing: Troughput at 500 ksps, acquisition and conversion times approx. 800-1400 ns
- Automatic Auto-Calibration, efficient performance over -40°C to +125°C
- Built-in Data Accumulator for ENOB enhancement
- Interface: SPI-compatible, max 30 MHz
- Package: 10-Lead MSOP or TDFN
- Environmental: Extended temperature range, suitable for automotive and industrial use

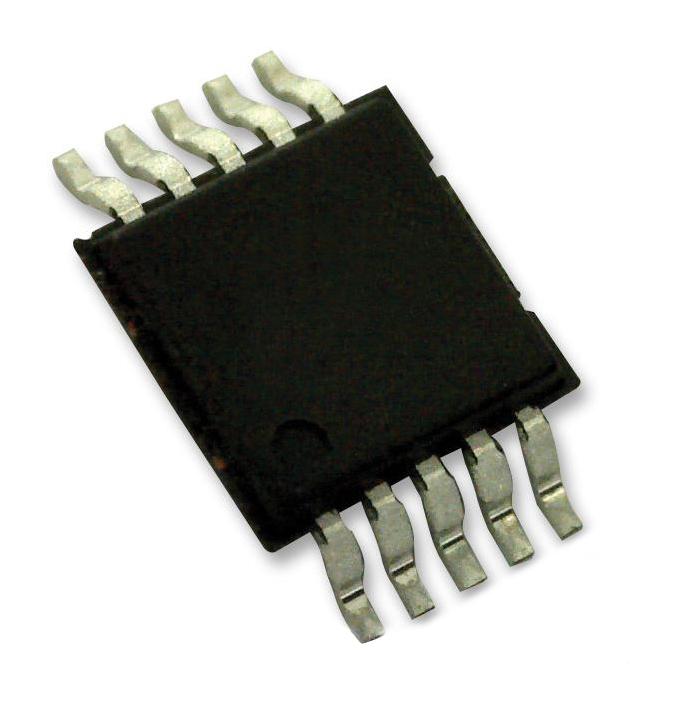

Buy the Buy Microchip MCP3314105 Part Number MCP3314105 Online
Order the Microchip MCP3314105 directly online to unlock high-precision, 12-bit resolution data acquisition at 500 ksps. Its wide temperature operation, external reference support, and integrated auto-calibration ensure stable, accurate measurements even in demanding environments. Perfect for industrial, automotive, and medical device use, this ADC offers flexible interface options with SPI compatibility at up to 30 MHz. With a low input leakage current and integrated data accumulator for ENOB enhancement, this device simplifies high-performance signal processing projects. Purchase now for reliable, high-speed data conversion solutions.
Buy Microchip MCP3314105 now and experience unmatched reliability and high-speed 12-bit data conversion for industrial and automotive applications.
Frequently Asked Questions
Where can I buy Microchip Technology MCP3314105EMS?
You can click on the BUY or RFQ button to purchase MCP3314105EMS from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP3314105EMS?
You can download the MCP3314105EMS datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP3314105EMS?
Microchip Technology
