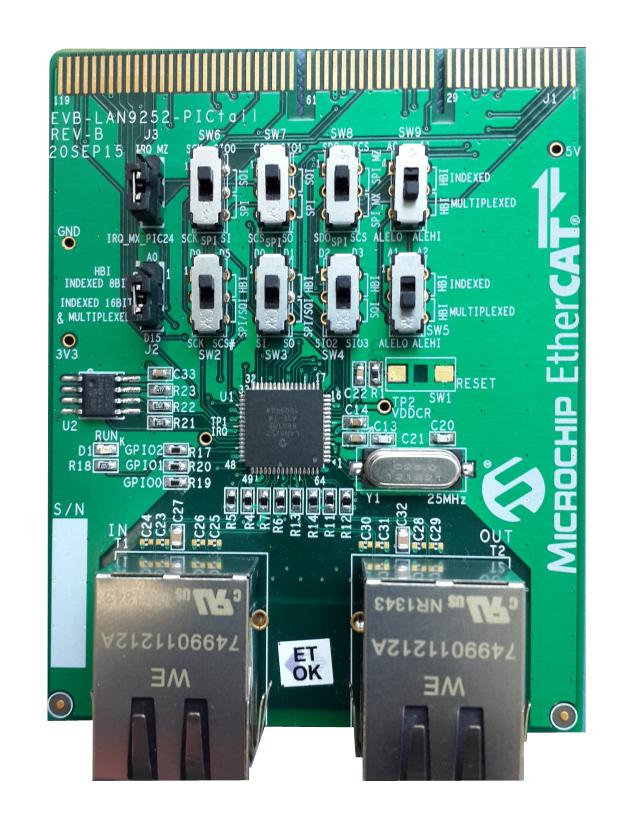

Microchip Technology EVBLAN9252PICTAIL EtherCAT Controller Module
The EVB-LAN9252-PICtail Add-On Board is a development and evaluation tool designed for the LAN9282 EtherCAT slave controller with dual integrated Ethernet PHYs. It connects seamlessly to the Explorer 16 platform, supporting plug-in modules for various microcontrollers including PIC32MX795F512L, PIC24FJ128GA010, and PIC32MZ series. Features include power regulation, multiple communication interface options such as HBI, SPI, and SQI, status LEDs, and configurable jumpers for versatile setup. It enables effective testing of Ethernet connectivity and network protocols, making it ideal for embedded system applications and industrial automation. The board complies with EU and FCC standards and supports various clock and interface configurations.
Microchip Technology EVBLAN9252PICTAIL EtherCAT Controller Module Specifications:
- Power Supply: +5V and +3.3V via PICtail Plus interface
- Internal Regulator: 1.2V for LAN9252 core logic
- Communication Interfaces: HBI, SPI, SQI (with MA320012)
- Clock: 25 MHz crystal oscillator required
- Supported Plug-in Modules: PIC32MX795F512L, PIC24FJ128GA010, PIC32MZxxxxECx100
- LED Indicators: D1 (RUN status), others for diagnostics
- Connectivity: J1 connector details support SPI, HBI, SQI modes
- Compliance: EU RoHS2 Directive 2011/65/EU, FCC standards
- Enclosure: Compact PCB with jumpers, switches for configuration
- Application: Ethernet network evaluation, industrial automation, embedded connectivity testing
Buy the Buy Microchip LAN9282 EtherCAT Controller Part Number EVBLAN9252PICTAIL Online
Order the Microchip EVB-LAN9252-PICtail now and streamline your network development projects. Designed for ease of setup with Explorer 16, this board provides flexible interface options including SPI, HBI, and SQI, supporting various microcontrollers. Its robust power regulation features and status LEDs enable quick diagnostics and testing. Perfect for industrial Ethernet applications, automation systems, and embedded connectivity solutions. Get this evaluation board today to accelerate your Ethernet protocol implementations and device testing with Microchip’s trusted quality.
Buy Microchip EVB-LAN9252-PICtail now and experience unmatched reliability and versatile Ethernet testing for industrial automation and embedded systems.
