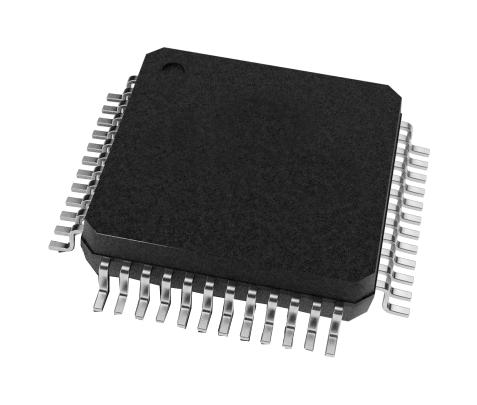

Microchip Technology HV2607TCR8X High-Voltage Analog Switch
The high-voltage analog switch offers 16 channels and can handle analog signal voltages up to +100V without requiring high-voltage supplies. Designed for applications like medical ultrasound imaging, piezoelectric transducer driving, and non-destructive testing, it features low harmonic distortion, low charge injection, and integrated bleed resistors to prevent voltage build-up on capacitive loads. The device operates with a simple +5V bias, has a high bandwidth of 100 MHz for small signals, and provides excellent noise immunity. It supports daisy-chaining for multiple channels, with low on-resistance and fast switching capabilities, making it ideal for high-voltage multi-plexing in complex systems.
Microchip Technology HV2607TCR8X High-Voltage Analog Switch Specifications:
- Number of channels: 16
- Analog signal voltage range: Up to +100V
- Supply voltage: +5V or +6V bias supply
- Maximum junction temperature: +125°C
- Operating temperature range: 0°C to +70°C
- Package: 48-pin LQFP, 7x7 mm
- Switch resistance: Typical 14Ω, maximum 23Ω
- Bandwidth: 100 MHz for small signals
- Off isolation: -76 dB at 5.0 MHz
- Switching frequency: Up to 50 kHz
- Power consumption: Quiescent current under 10 pA
- Integrated bleed resistors: Present on HV2707 (both sides), HV2708 (one side), absent on HV2607
- Control interface: Serial data with clock up to 66 MHz, latch enable, clear
Buy the Microchip Series HV2707 High-Voltage Analog Switch: HV2607TCR8X
Get the reliable Microchip high-voltage analog switch with 16 channels capable of handling up to +100V. Perfect for ultrasound, transducer control, and high-voltage switching systems. Compact and efficient in a 48-pin LQFP package, it features low harmonic distortion, high bandwidth, and integrated bleed resistors to eliminate voltage build-up. Designed for easy daisy-chaining and robust performance, this switch ensures precise control in complex imaging and testing applications. Buy online today for dependable high-voltage switching performance in your professional projects.
Order your Microchip Series HV2707 High-Voltage Analog Switch today and give your projects the dependable high-voltage switching performance they deserve.
