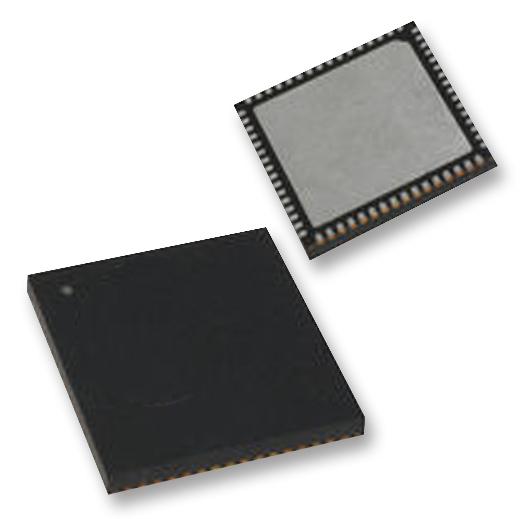

Microchip Technology HV2918R4X High-Voltage Analog Switch
The HV2818/HV2918 are 32-channel high-voltage analog switches designed for low harmonic distortion and low charge injection without requiring high-voltage bias supplies. Operating with only +5V bias, they facilitate high-voltage pulsed signal passing, ideal for medical ultrasound imaging, piezoelectric transducer driving, and printing applications. Featuring integrated bleed resistors in the HV2918 for load voltage stability, these compact, pin-to-pin compatible devices support up to +100V pulsed signals, deliver a typical 6Ω ON resistance, and provide bandwidths up to 50 MHz for small signals, ensuring reliable high-voltage switching in demanding systems.
Microchip Technology HV2918R4X High-Voltage Analog Switch Specifications:
- Number of channels: 32 (16 2:1 MUX)
- Operating Voltage: +5V bias supply, supports up to +100V pulsed signals
- On Resistance: Typical 6Ω
- Bandwidth: Up to 50 MHz for small signals
- Harmonic Distortion: Low; -70 dB @ 5 MHz
- Isolation: -70 dB at 5 MHz
- Charge Injection: 50 pC (Y pin), 100 pC (SW pin)
- Pulse Width Passing: Up to 2.5 microseconds
- Package: 64-pin QFN (9x9 mm) with Thermal Pad
- Digital Interface: Serial control with 66 MHz clock, includes latch, clear, and cascade options
- Integrated Bleed Resistors: Present on HV2918 to eliminate voltage buildup
- Temperature Range: 0°C to +70°C
- Absolute Max Ratings: Logic Voltage -0.5V to 6.6V, Signal Voltage: ±110V, Peak current per channel: 2.7A
Buy the Microchip Series HV2828 HV2918: High-Voltage Analog Switch: HV2918
Purchase the Microchip Series HV2918 today for your high-voltage switching needs in medical ultrasound, piezo transducers, or print head applications. This 32-channel device operates with a +5V bias supply and supports pulsed signals up to +100V, delivering low harmonic distortion and fast switching capabilities. Its compact 64-pin QFN package includes integrated bleed resistors to prevent voltage buildup on capacitive loads, ensuring stable operation. Ideal for demanding high-voltage applications, the HV2918 offers reliable performance, high bandwidth up to 50 MHz, and robust features designed for precision and durability in professional systems.
Order your Microchip Series HV2918 high-voltage analog switch today and enhance your ultrasound, piezoelectric, or inkjet projects with reliable high-voltage switching.
